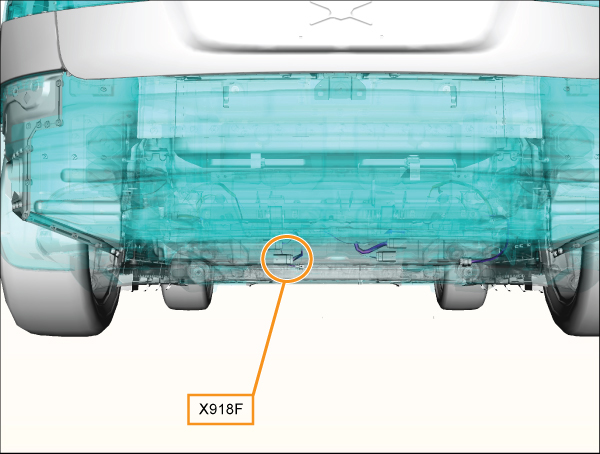

X918F - s-lhd-sop2
Location:
Connector Detail: fci_54200409
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | BN | 2 |
| 2 | BK/WH | 2 |
| 3 | RD/WH | 2 |
| 4 | DB/WH | 2 |
2012-2020 Model S Connector Reference
