X920F - s-lhd-sop2

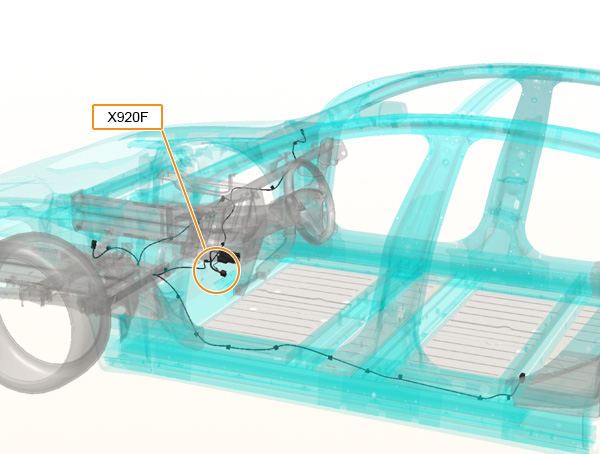

Location:
Connector Detail: yazaki_7283-3243-40
Gender:
Color: LightGray
| Cav | Col | Gauge |
|---|---|---|
| 1 | LG | 0.5 |
| 2 | RD | 2 |
| 3 | YE | 0.5 |
| 4 | WH | 0.5 |
| 5 | PK | 0.5 |
| 6 | WH | 1 |
| 7 | BK | 1 |
| 8 | BN | 2 |
2012-2020 Model S Connector Reference
