X966F - s-lhd-sop2

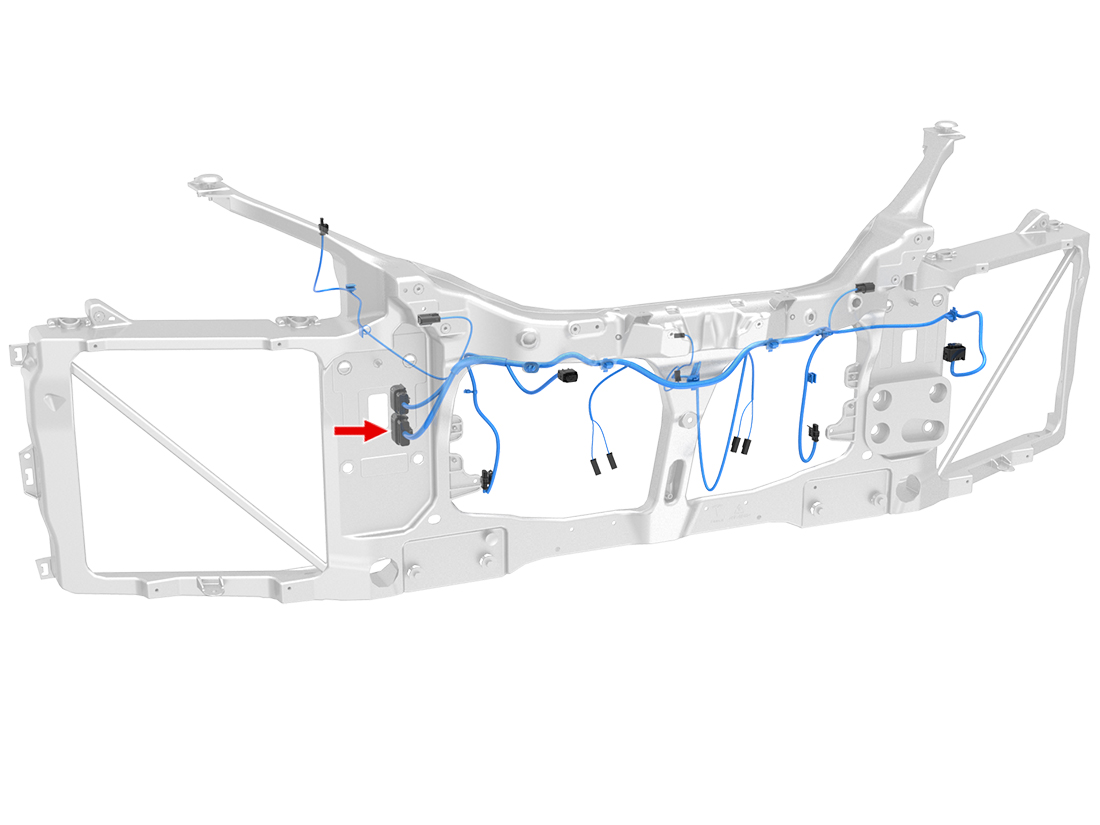

Location:
Connector Detail: molex_33472-1202
Gender:
Color: Gray
| Cav | Col | Gauge |
|---|---|---|
| 1 | PK/BN | 0.5 |
| 2 | DG/BN | 0.5 |
| 3 | PK/BK | 0.5 |
| 4 | DG/BK | 0.5 |
| 5 | RD | 0.5 |
| 6 | WH | 0.5 |
| 7 | OG/DG | 0.5 |
| 8 | PK/RD | 0.5 |
| 9 | BK | 0.5 |
| 10 | LG/RD | 0.35 |
| 11 | LG/OG | 0.5 |
| 12 | OG/BN | 0.35 |
