X050 - s-lhd-sop3

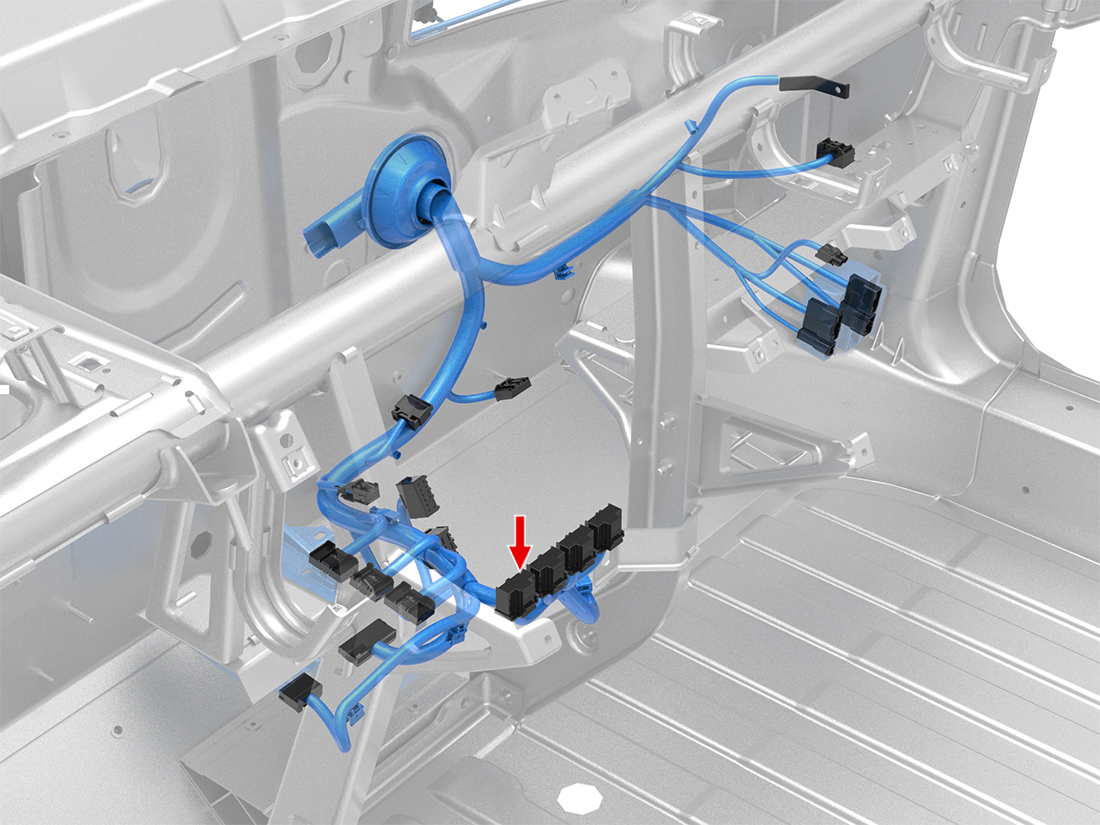

Location:

Connector Detail: molex_34729-0200

Gender:

Color: BK

Cav	Col	Gauge
1	OG	0.5
2	WH/DG	0.35
8	WH/TN	0.35
10	BK/TN	0.35
11	OG	0.5
12	BK/WH	0.5
13	GY/BK	0.5
14	BK	0.5
15	RD/WH	0.35
16	RD/YE	0.35
17	RD/GY	0.35
18	WH/BN	0.35
