X059 - s-lhd-sop3

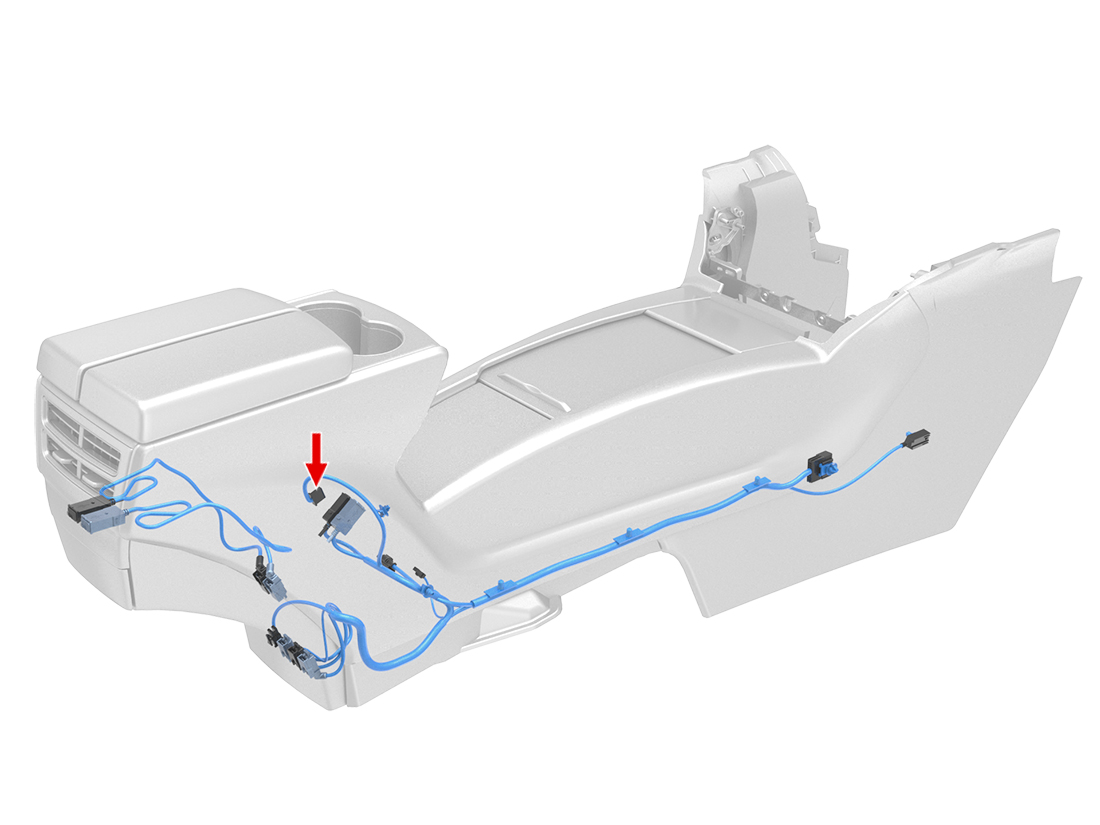

Location:
Connector Detail: ket_651439
Gender:
Color: WH
| Cav | Col | Gauge |
|---|---|---|
| 1 | PK/BK | 0.35 |
| 2 | BK/WH | 0.5 |
| 4 | PK/YE | 0.35 |
| 6 | OG/BK | 0.5 |
2012-2020 Model S Connector Reference
