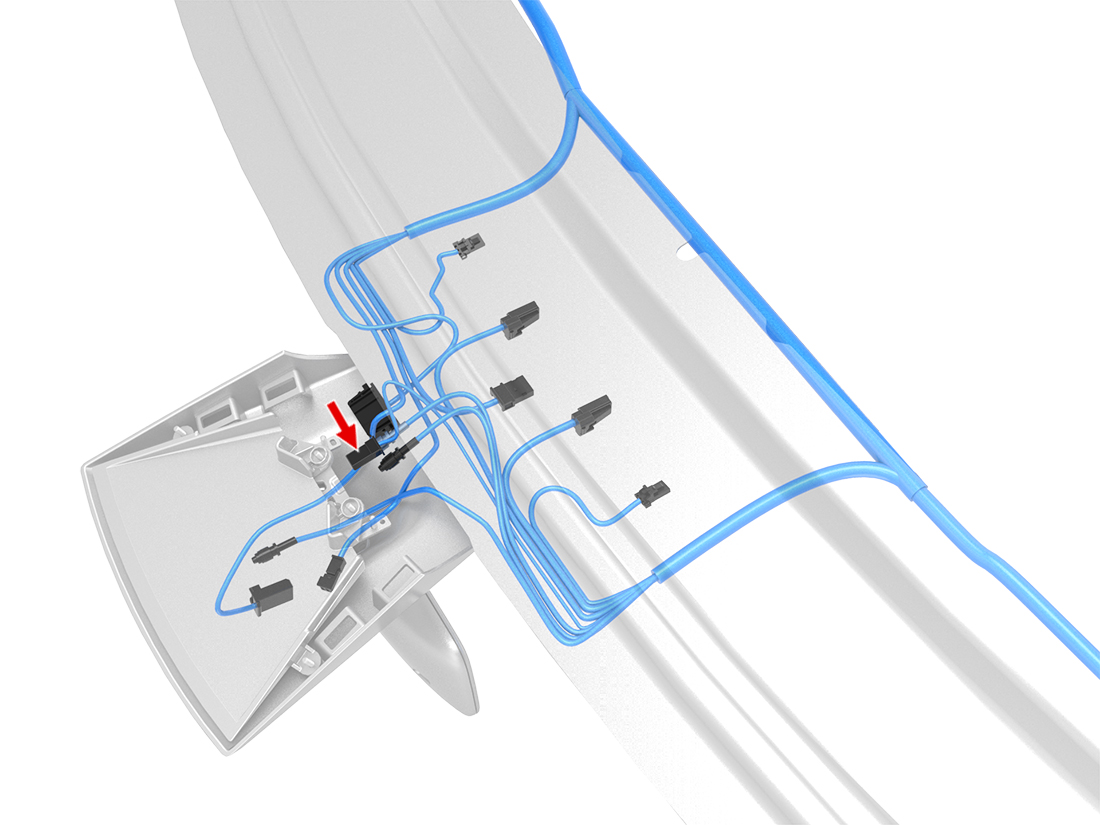

X075 - s-lhd-sop3
Location:
Connector Detail: amp_9-1718346-1
Gender:
Color: WaterBlue
| Cav | Col | Gauge |
|---|---|---|
| 1 | PK/YE | 0.5 |
| 2 | LG/BK | 0.35 |
| 3 | BK/GY | 0.35 |
2012-2020 Model S Connector Reference
