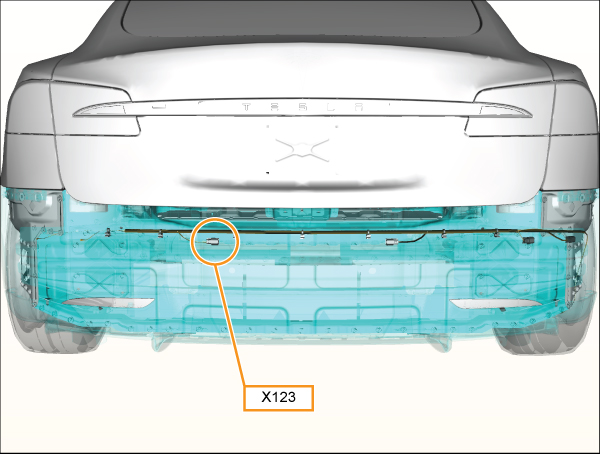

X123 - s-lhd-sop3
Location:
Connector Detail: molex_31403-3700
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | WH/BN | 0.35 |
| 2 | WH/BK | 0.35 |
| 3 | WH/DG | 0.35 |
2012-2020 Model S Connector Reference
