X131 - s-lhd-sop3

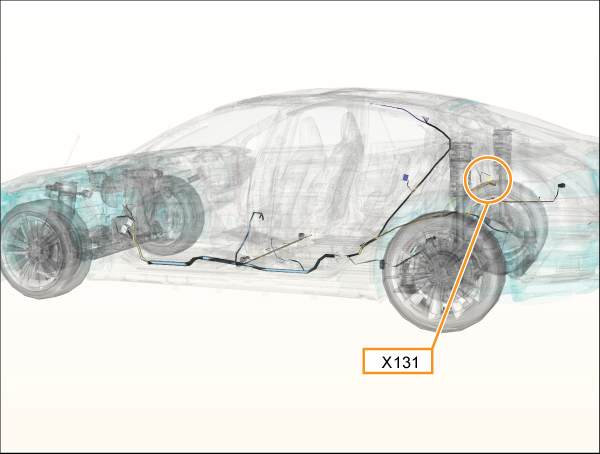

Location:
Connector Detail: yazaki_7283-9068-90
Gender:
Color: Blue
| Cav | Col | Gauge |
|---|---|---|
| 1 | TN | 0.5 |
| 4 | RD | 0.35 |
| 5 | WH/OG | 0.35 |
| 10 | TN/DG | 0.35 |
| 11 | LB/BN | 0.35 |
| 13 | WH/VT | 0.5 |
2012-2020 Model S Connector Reference
