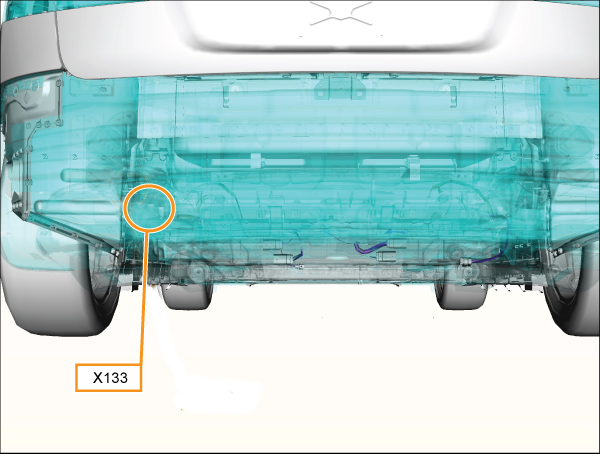

X133 - s-lhd-sop3
Location:
Connector Detail: molex_31403-3700
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | GY/BN | 0.5 |
| 2 | GY/BK | 0.5 |
| 3 | GY/OG | 0.35 |
