X209 - s-lhd-sop3

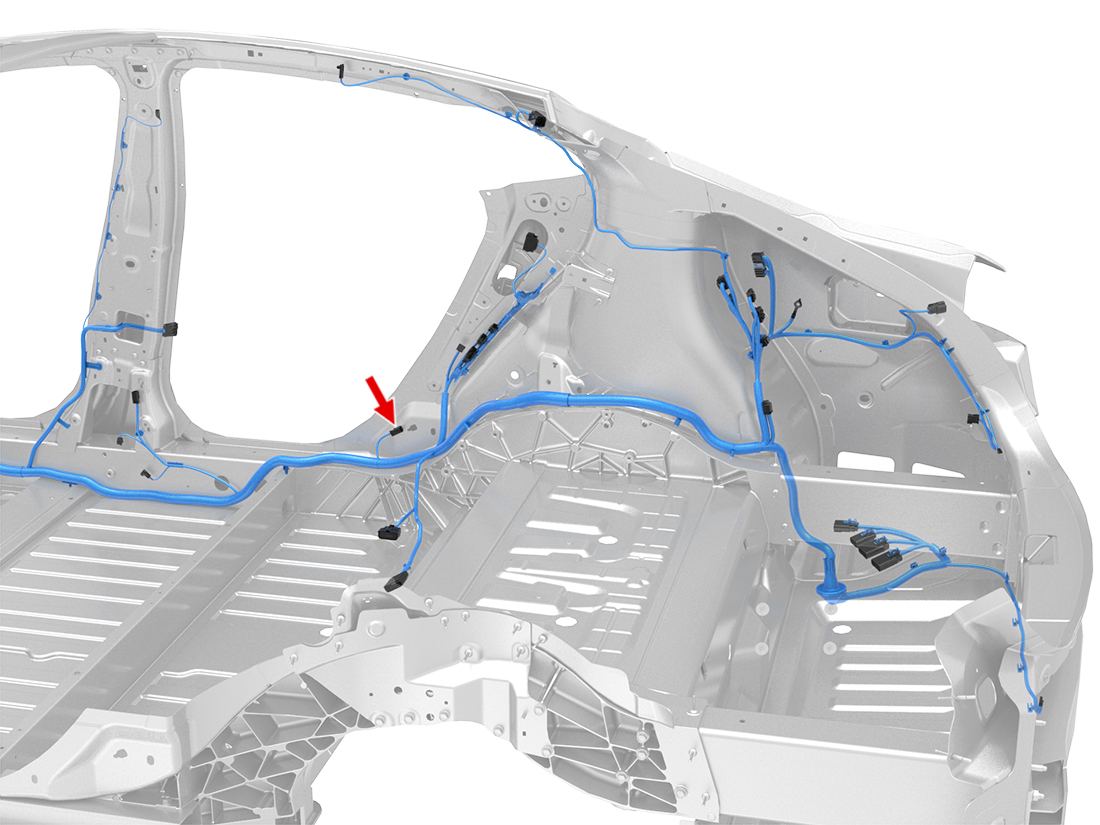

Location:
Connector Detail: molex_31403-2200
Gender:
Color: Gray
| Cav | Col | Gauge |
|---|---|---|
| 1 | PK/LB | 0.5 |
| 2 | DG/LB | 0.5 |
2012-2020 Model S Connector Reference
