X272 - s-lhd-sop3

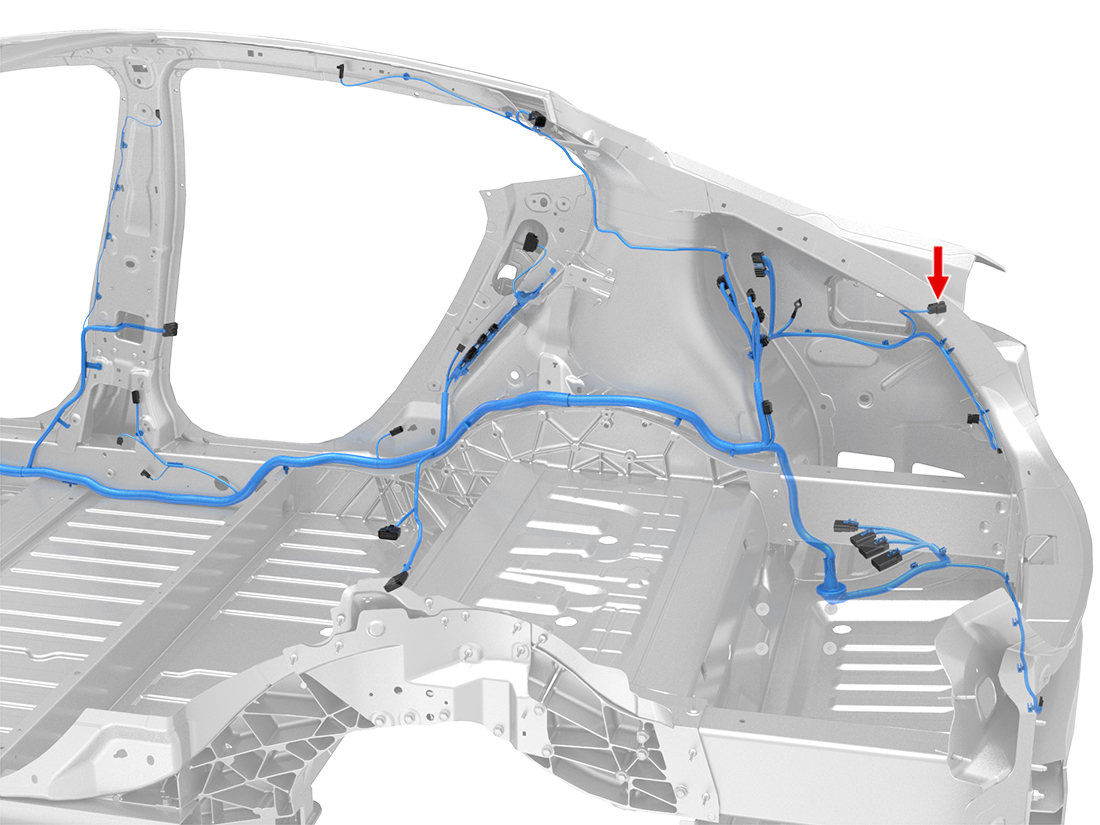

Location:
Connector Detail: molex_33472-0601
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | DG/PK | 0.5 |
| 2 | TN/DB | 0.5 |
| 3 | TN/BK | 0.5 |
| 4 | PK/VT | 0.5 |
| 5 | BK | 0.75 |
2012-2020 Model S Connector Reference
