X316 - s-lhd-sop3

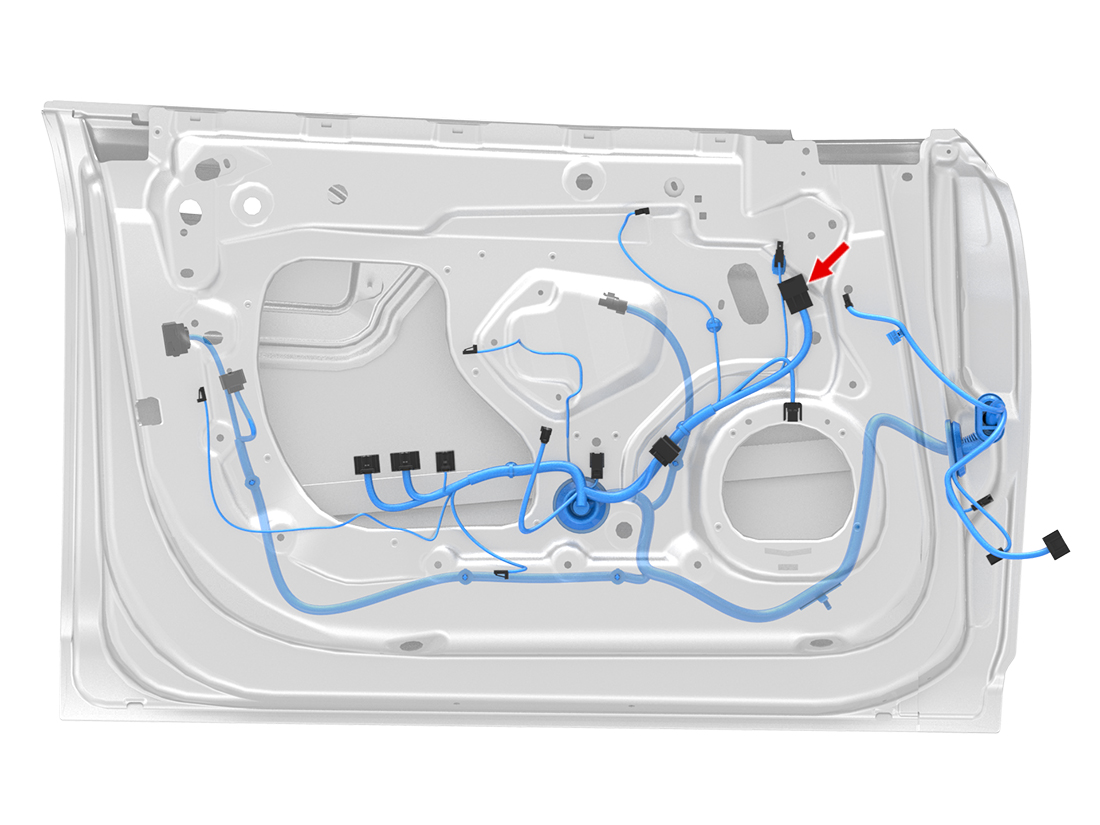

Location:
Connector Detail: yazaki_7282-6568-40
Gender:
Color: LightGray
| Cav | Col | Gauge |
|---|---|---|
| 1 | RD | 0.35 |
| 2 | DB/GY | 0.35 |
| 3 | DB/BK | 0.35 |
| 5 | RD/YE | 0.35 |
| 6 | GY/OG | 0.35 |
| 7 | RD/GY | 0.35 |
| 8 | WH/RD | 0.35 |
| 10 | TN | 0.35 |
| 11 | GY | 0.35 |
| 12 | DB/WH | 0.35 |
| 15 | BK | 0.35 |
| 16 | TN/DG | 0.35 |
| 17 | BK/GY | 0.35 |
| 18 | WH/BK | 0.35 |
| 20 | DG | 0.35 |
