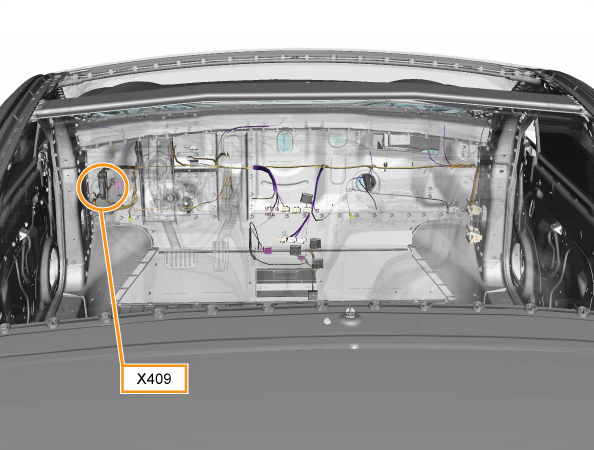

X409 - s-lhd-sop3
Location:
Connector Detail: yazaki_7283-3243-40
Gender:
Color: LightGray
| Cav | Col | Gauge |
|---|---|---|
| 1 | TN | 2 |
| 2 | TN/BK | 2 |
| 3 | BN | 2 |
| 4 | BN/BK | 2 |
2012-2020 Model S Connector Reference
