X415 - s-lhd-sop3

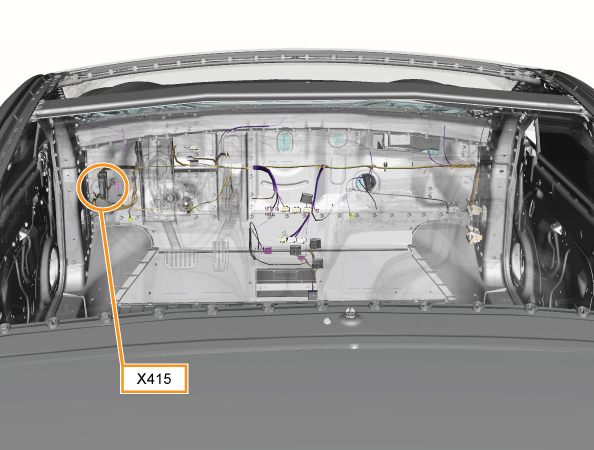

Location:
Connector Detail: yazaki_7282-3243-40
Gender:
Color: LightGray
| Cav | Col | Gauge |
|---|---|---|
| 1 | WH | 2 |
| 2 | WH/BK | 2 |
| 3 | GY | 2 |
| 4 | GY/BK | 2 |
| 5 | BK | 2 |
| 6 | YE/BN | 2 |
2012-2020 Model S Connector Reference
