X556 - s-lhd-sop3

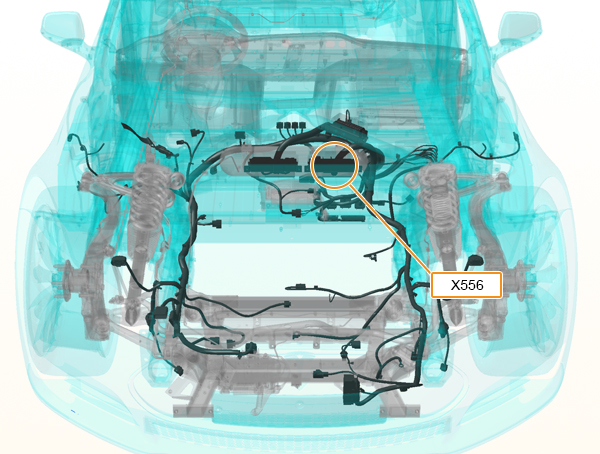

Location:

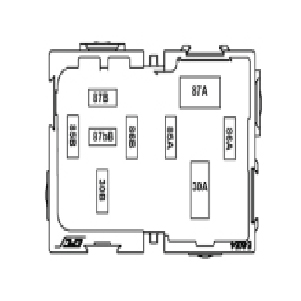

Connector Detail: aees_e6054
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 85A | BN/RD | 0.5 |
| 86A | BN/LB | 0.5 |
| 30A | RD/LB | 5 |
| 87A | RD/WH | 5 |
| 85B | WH/DB | 0.5 |
| 86B | BN/WH | 0.5 |
| 30B | TN/RD | 3 |
| 87B | YE/GY | 3 |
