X820 - s-lhd-sop3

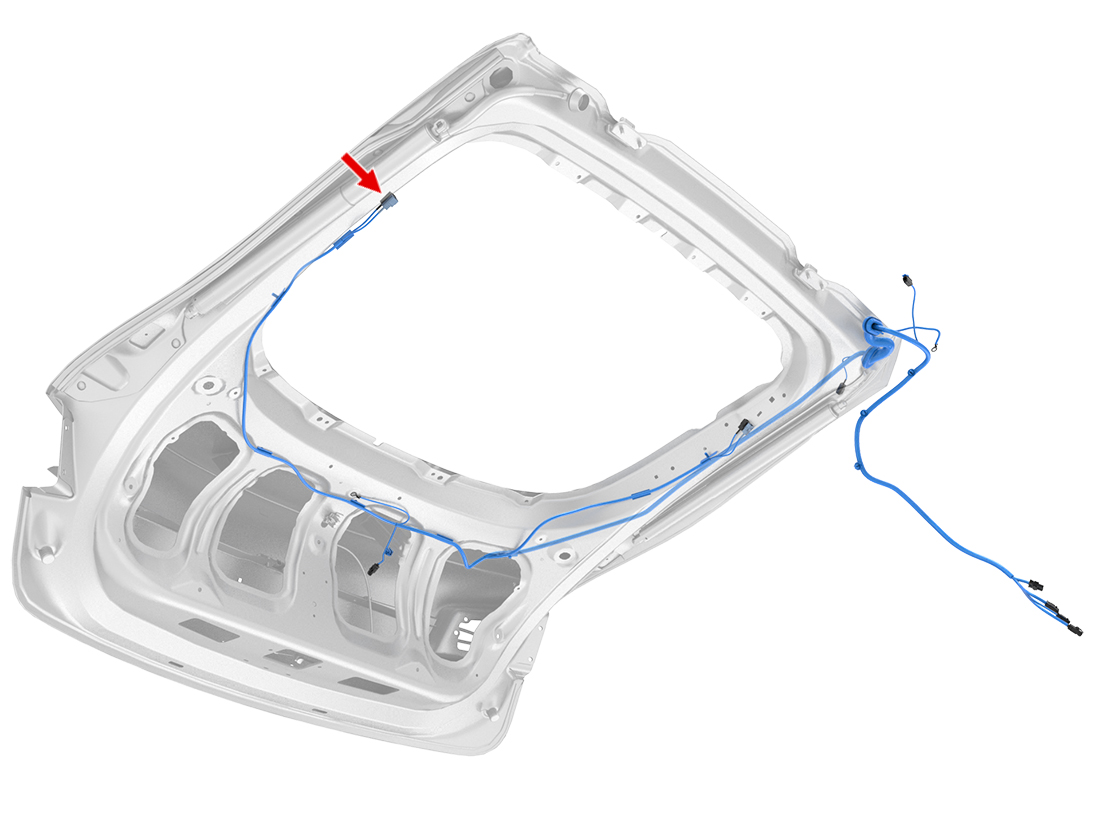

Location:

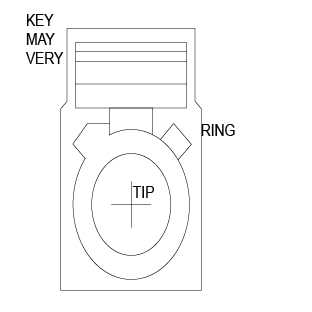

Connector Detail: amphenol_fa1-nasj-c01-0
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| TIP | NA | 0.22 |
| RING | SH | 3.01 |
2012-2020 Model S Connector Reference
