X908M - s-lhd-sop3

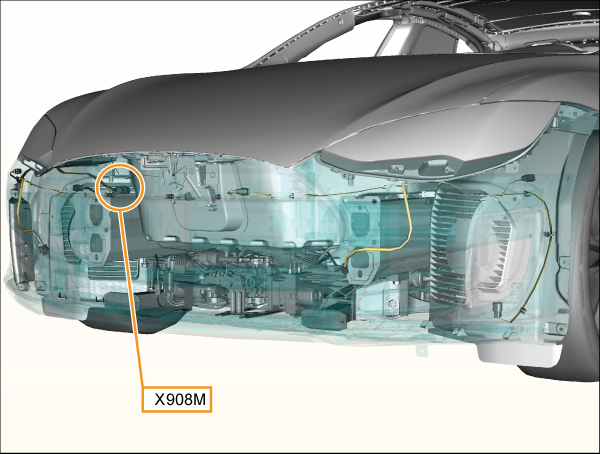

Location:
Connector Detail: molex_33482-2001
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | TN | 0.35 |
| 2 | RD | 0.35 |
| 3 | WH/OG | 0.35 |
| 4 | TN/DG | 0.35 |
| 5 | LB/BN | 0.35 |
| 6 | WH/VT | 0.35 |
| 7 | GY/BN | 0.35 |
| 8 | GY/BK | 0.35 |
| 9 | GY/RD | 0.35 |
| 10 | GY/OG | 0.35 |
| 11 | OG/DB | 0.5 |
| 12 | LB/RD | 0.5 |
| 13 | VT/RD | 0.75 |
| 14 | TN/RD | 0.5 |
| 15 | BK | 0.75 |
| 16 | LG/WH | 0.5 |
| 17 | LB/DG | 0.5 |
| 18 | VT/DG | 0.75 |
| 19 | WH/DB | 0.5 |
| 20 | BK | 0.75 |
