X920M - s-lhd-sop3

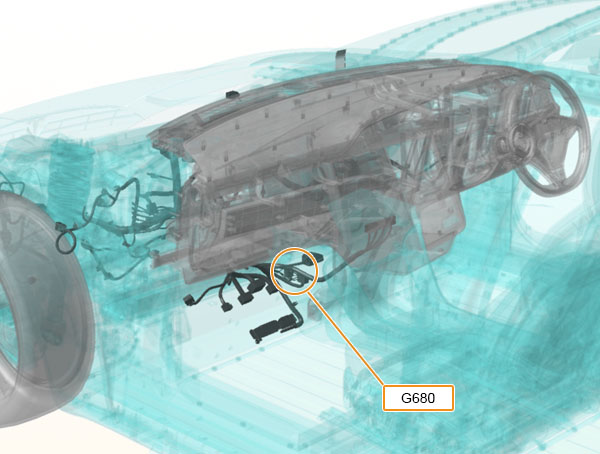

Location:
Connector Detail: yazaki_7282-3243-40
Gender:
Color: LightGray
| Cav | Col | Gauge |
|---|---|---|
| 1 | LG | 0.5 |
| 1 | LG | 0.5 |
| 2 | RD/YE | 2 |
| 3 | YE | 0.5 |
| 4 | WH | 0.5 |
| 5 | PK | 0.5 |
| 6 | RD/WH | 1 |
| 7 | BK/WH | 1 |
| 8 | BN/WH | 2 |
