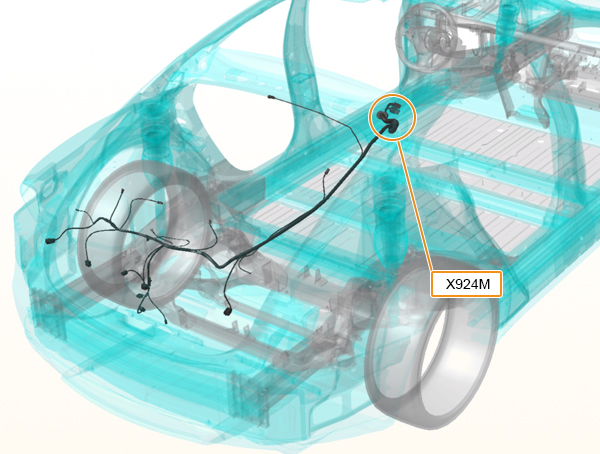

X924M - s-lhd-sop3
Location:
Connector Detail: amp_174929-1
Gender:
Color: WH
| Cav | Col | Gauge |
|---|---|---|
| 1 | LB | 0.75 |
| 2 | LB/BK | 0.75 |
| 3 | LG | 0.75 |
| 4 | LG/BK | 0.75 |
2012-2020 Model S Connector Reference
