X951F - s-lhd-sop3

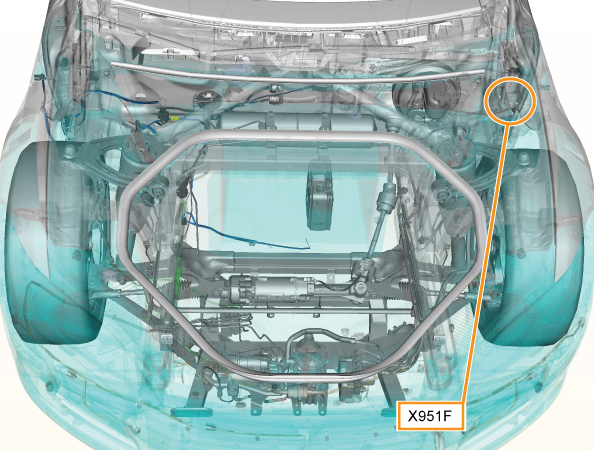

Location:

Connector Detail: yazaki_7283-4192-40

Gender:

Color: LightGray

Cav	Col	Gauge
1	YE/VT	0.75
2	PK/BN	0.5
3	BN/LB	2
4	YE	0.5
6	RD/BN	0.75
7	VT/GY	0.5
8	PK/BK	0.5
9	DG/DB	0.5
10	DG/RD	0.5
11	GY/BK	0.5
12	DB/OG	0.5
13	DB/BK	0.5
14	DG/YE	0.5
15	DG/OG	0.5
16	OG/DB	0.5
17	GY	0.5
18	LG/WH	0.5
19	BN	0.5
20	OG/DG	0.5
21	BN/DB	0.5
22	BN/RD	0.5
23	BN/WH	0.5
24	YE	0.5
25	DB/LB	0.35
26	RD	0.5
27	BN/BK	0.5
28	OG	0.5
29	DG/BK	0.5
30	LG/BN	0.5
31	VT/GY	0.5
32	VT	0.5
33	WH/VT	0.5
34	WH/VT	0.5
35	LG/RD	0.5
36	LG/BK	0.5
37	RD/DB	0.5
38	LB	0.5
39	BN/YE	0.5
40	DG	0.5
41	YE/RD	0.5
42	YE/DG	0.5
43	WH/DG	0.35
