X960M - s-lhd-sop3

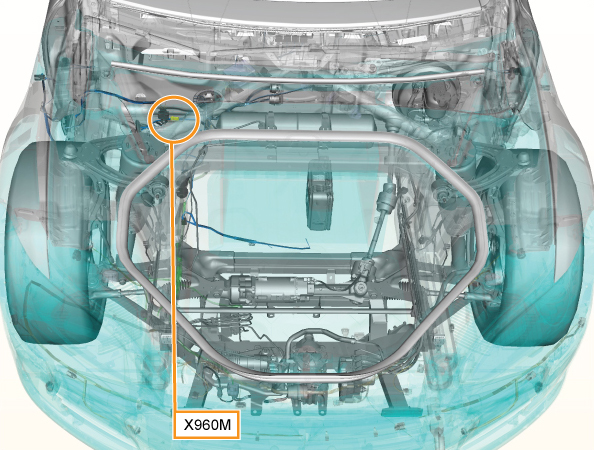

Location:

Connector Detail: yazaki_7282-4190-30

Gender:

Color: BK

Cav	Col	Gauge
2	RD/BN	0.75
3	RD/BK	2
4	BN/WH	2
5	VT	2
7	VT	0.5
8	LG/BN	0.5
9	RD	0.35
10	BK	0.35
11	SH	3.01
12	VT/OG	0.5
13	WH/LB	0.5
14	BN	1
15	OG/VT	0.5
16	YE/LB	0.5
18	DB/LB	0.35
19	GY/BN	0.5
20	LB/WH	0.5
21	BN/GY	0.5
22	BN/LG	0.5
23	LB/VT	0.5
24	PK/YE	0.5
25	LB/DG	0.5
26	GY/BK	0.5
27	GY/RD	0.35
28	WH/BK	0.5
29	VT/LB	0.5
31	GY/OG	0.35
32	TN	0.5
33	RD	0.35
34	WH/OG	0.35
35	YE	0.5
36	TN/DG	0.35
38	VT/LG	0.5
39	BN/YE	0.5
40	BN/WH	0.5
40	BN/WH	0.5
41	BN	0.5
41	BN	0.5
42	OG/LG	0.5
43	LB/BN	0.35
