X965F - s-lhd-sop3

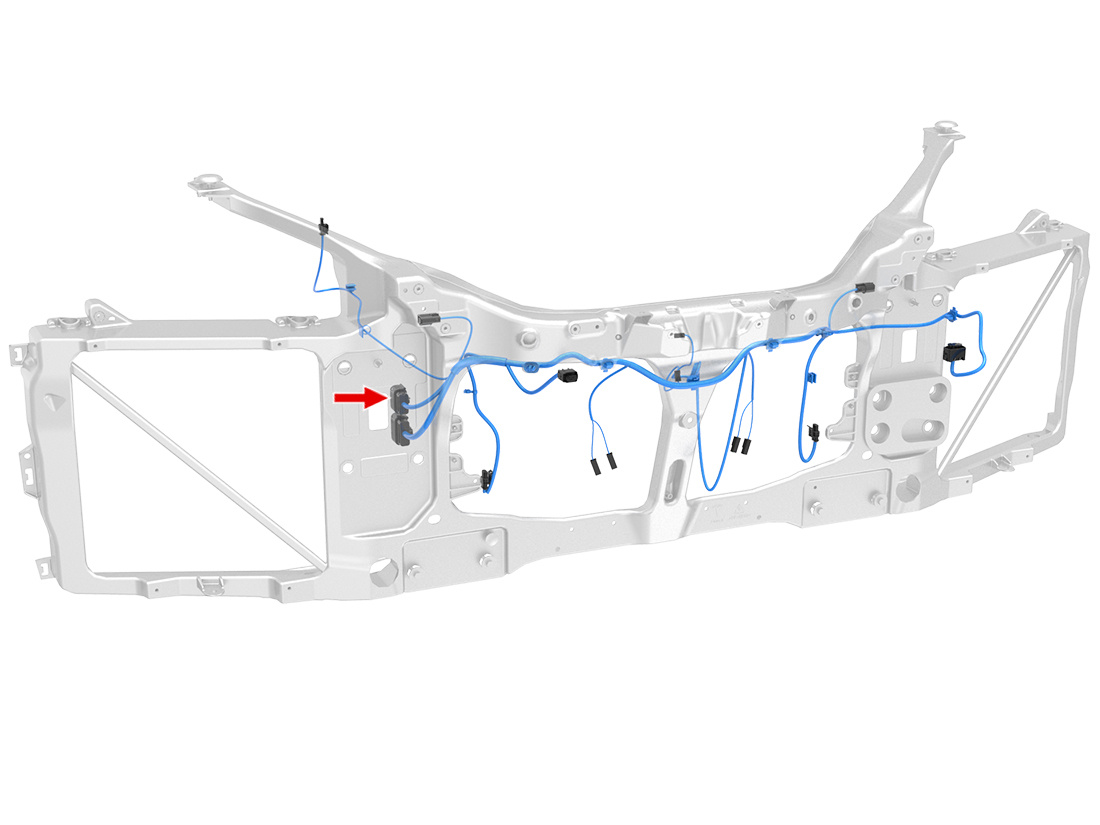

Location:
Connector Detail: molex_33472-1201
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | OG/DB | 0.5 |
| 2 | LG/WH | 0.5 |
| 3 | DG/WH | 0.5 |
| 4 | BK/WH | 0.5 |
| 5 | OG/LG | 0.35 |
| 6 | VT | 0.75 |
| 7 | BK | 0.75 |
| 8 | RD/GY | 0.75 |
| 9 | DG | 0.5 |
| 10 | WH/GY | 0.5 |
| 11 | BK | 0.75 |
| 12 | BN | 0.5 |
