X967M - s-lhd-sop3

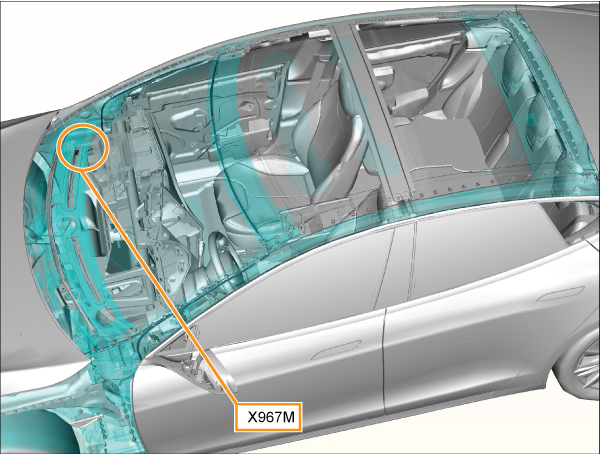

Location:
Connector Detail: yazaki_7282-6568-40
Gender:
Color: LightGray
| Cav | Col | Gauge |
|---|---|---|
| 1 | BK | 0.75 |
| 2 | LG/VT | 0.35 |
| 3 | GY | 0.35 |
| 4 | GY/BK | 0.35 |
| 5 | GY/BN | 0.35 |
| 6 | GY/RD | 0.35 |
| 7 | PK/YE | 0.5 |
| 8 | LG/BK | 0.35 |
| 9 | BK/GY | 0.35 |
| 12 | RD/DB | 0.5 |
| 13 | YE/DG | 0.5 |
| 14 | WH/GY | 0.5 |
| 15 | BK | 0.75 |
| 16 | DG/WH | 0.5 |
| 17 | DG | 0.5 |
| 18 | WH/DB | 0.5 |
