X976F - s-lhd-sop3

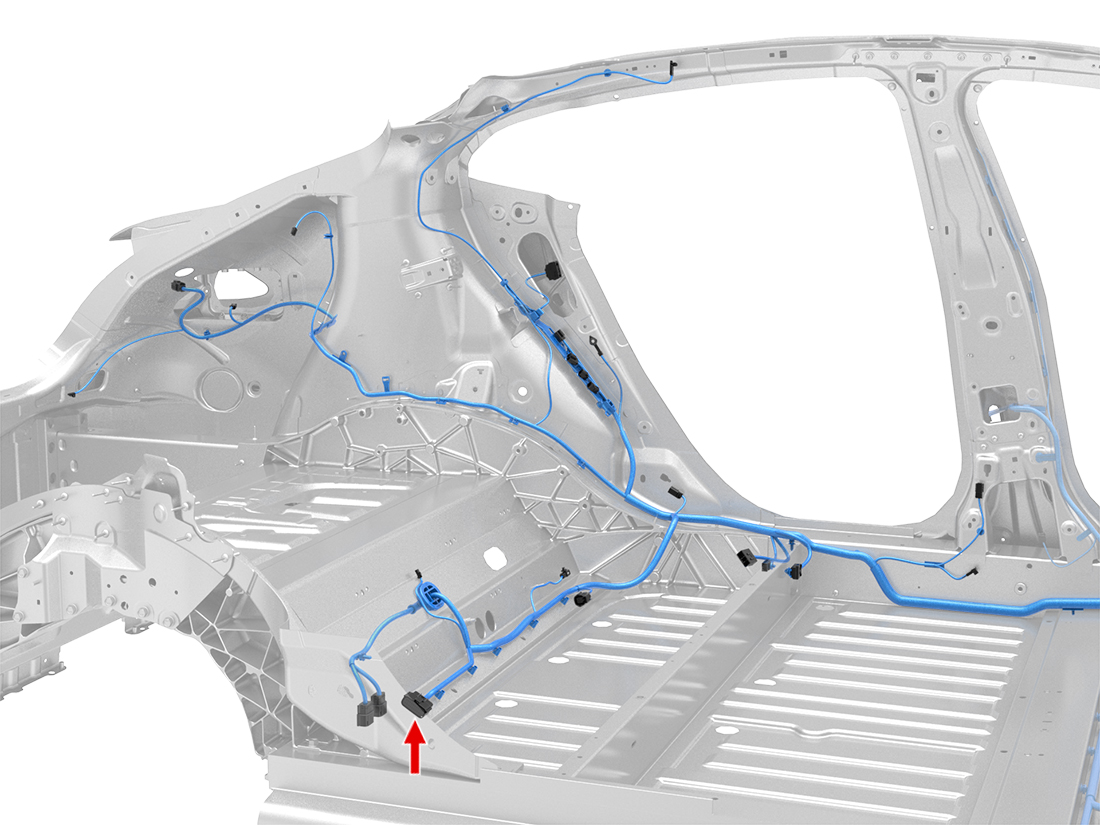

Location:
Connector Detail: yazaki_7283-6388-40
Gender:
Color: LightGray
| Cav | Col | Gauge |
|---|---|---|
| 1 | VT | 0.5 |
| 2 | OG | 0.5 |
| 3 | RD/GY | 0.75 |
| 4 | YE/BK | 0.5 |
| 5 | DG/WH | 0.5 |
| 5 | DG/WH | 0.5 |
| 6 | DG | 0.5 |
| 6 | DG | 0.5 |
| 7 | RD/GY | 0.5 |
| 8 | GY/BN | 0.5 |
| 9 | GY/RD | 0.35 |
| 10 | GY/OG | 0.35 |
| 14 | YE/RD | 0.5 |
| 15 | RD | 0.5 |
| 16 | DB | 0.5 |
| 17 | YE | 0.5 |
| 18 | GY/YE | 0.35 |
| 19 | GY/DG | 0.35 |
| 20 | GY/BK | 0.5 |
