X980M - s-lhd-sop3

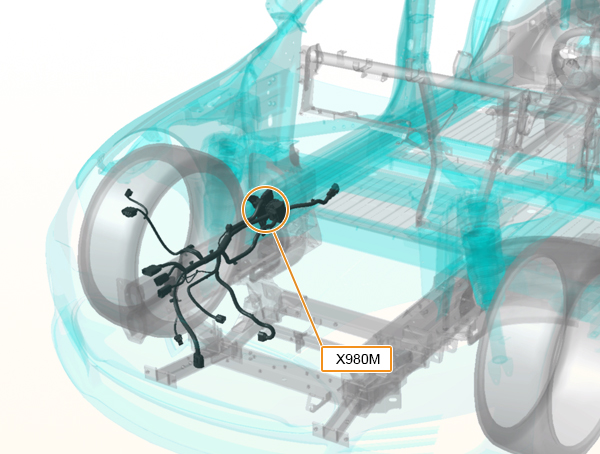

Location:

Connector Detail: yazaki_7282-8866-30

Gender:

Color: BK

Cav	Col	Gauge
1	LG/OG	0.35
2	LG/WH	0.35
3	WH	0.35
4	LG/RD	0.35
5	WH/BN	0.35
6	OG/BN	0.35
7	PK/DG	0.35
8	GY/WH	0.35
9	GY/PK	0.35
10	WH/LG	0.35
11	DB/OG	0.5
12	DB/BK	0.5
13	PK/BK	0.5
14	DG/BK	0.5
15	RD	0.35
16	BK/WH	0.35
17	OG/LG	0.35
18	OG/DB	0.35
19	WH/BK	0.35
20	PK/RD	0.35
21	WH/RD	0.35
22	DB/PK	0.35
23	TN	0.35
24	RD	0.35
25	WH/OG	0.35
26	TN/DG	0.35
27	LB/BN	0.35
28	WH/VT	0.35
29	GY/BN	0.35
30	GY/BK	0.35
31	GY/RD	0.35
32	GY/OG	0.35
33	OG/DG	0.35
34	BU/WH	1
35	DG/RD	1
36	DG	0.75
37	OG/DG	0.75
38	VT/RD	0.75
39	VT/DG	0.75
40	OG/BN	1
41	VT	0.75
42	RD/GY	0.75
43	PK/RD	0.5
44	LB/RD	0.5
45	TN/RD	0.5
46	LB/DG	0.5
47	WH/DB	0.5
48	GY	0.5
49	OG	0.5
50	DB/GY	0.5
51	RD/WH	0.35
52	TN/BK	0.35
53	TN/DB	0.35
