X981F - s-lhd-sop3

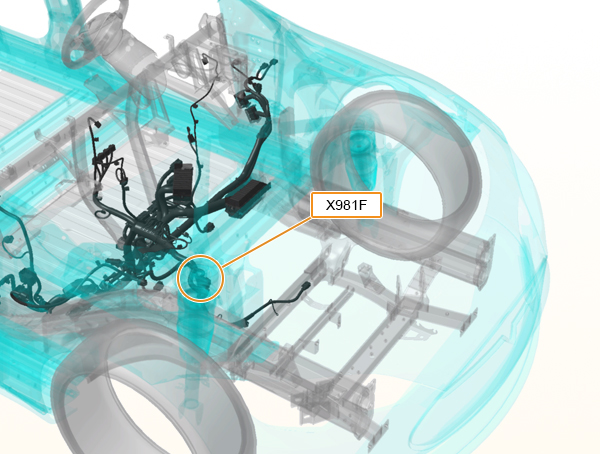

Location:
Connector Detail: molex_33472-2001
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 3 | GY | 0.5 |
| 4 | TN/BK | 0.5 |
| 5 | TN/DB | 0.5 |
| 6 | TN/RD | 0.5 |
| 7 | TN/OG | 0.5 |
| 8 | GY/YE | 0.5 |
| 9 | WH/RD | 0.5 |
| 13 | GY/DG | 0.5 |
| 14 | WH/DG | 0.5 |
| 15 | BK | 0.5 |
| 16 | WH/BN | 0.5 |
| 17 | WH/TN | 0.5 |
| 18 | WH/DB | 0.5 |
| 19 | WH/BK | 0.5 |
