X991M - s-lhd-sop3

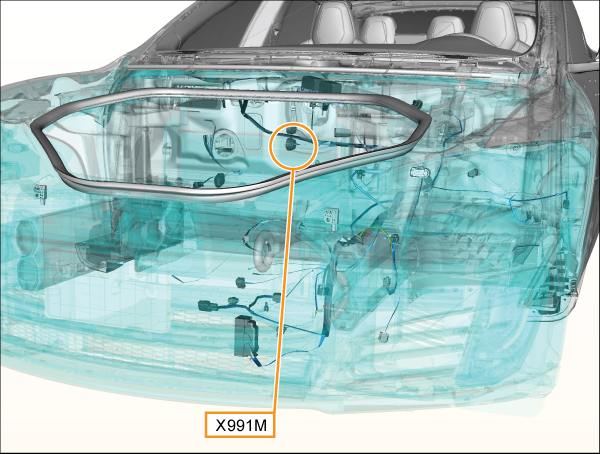

Location:
Connector Detail: molex_33482-2001
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | YE/RD | 0.5 |
| 2 | YE/DG | 0.5 |
| 3 | VT/LG | 0.5 |
| 4 | BN/YE | 0.5 |
| 5 | VT/OG | 0.5 |
| 6 | WH/LB | 0.5 |
| 7 | DB/GY | 0.5 |
| 8 | BN/GY | 0.5 |
| 9 | BK/GY | 0.5 |
| 11 | BN/RD | 0.5 |
| 12 | BN/LB | 0.5 |
| 13 | BK/TN | 0.35 |
| 14 | RD/TN | 0.5 |
| 15 | DG/WH | 0.5 |
| 16 | DG | 0.5 |
| 17 | GY | 0.5 |
| 18 | OG | 0.5 |
