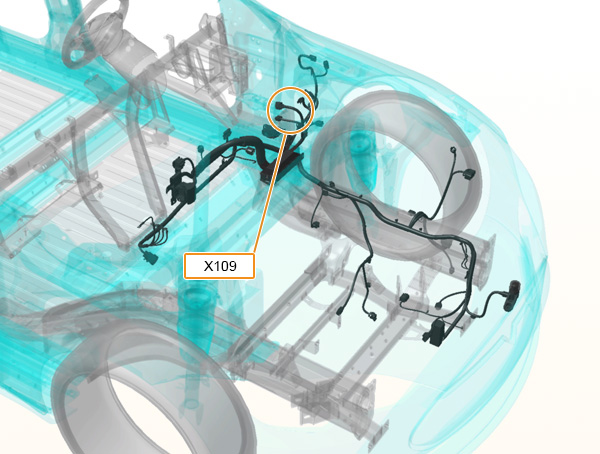

X109 - s-lhd-sop4
Location:
Connector Detail: molex_34250-0018
Gender:
Color: Gray
| Cav | Col | Gauge |
|---|---|---|
| 1 | VT | 0.5 |
| 2 | BK/WH | 0.5 |
| 3 | RD/WH | 0.5 |
2012-2020 Model S Connector Reference
