X139 - s-lhd-sop4

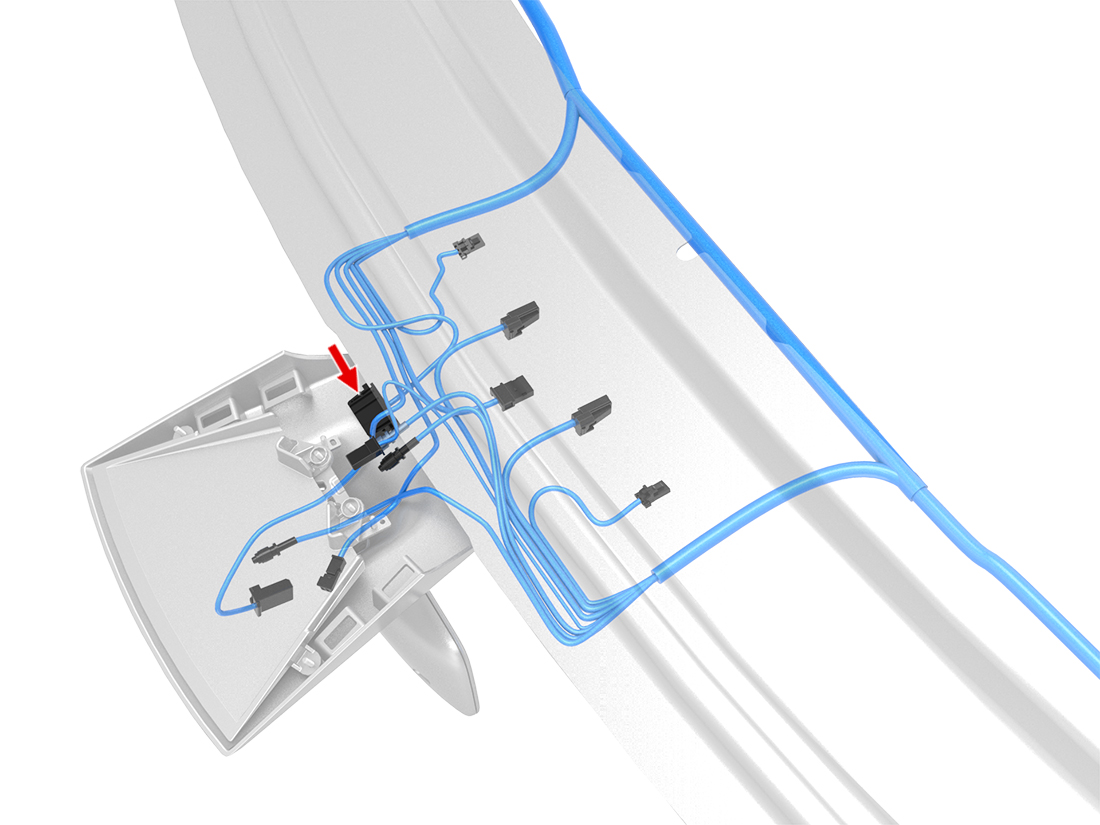

Location:
Connector Detail: jst_ait2pb-10-1ak
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | BK | 0.35 |
| 3 | WH/GY | 0.5 |
| 5 | DG/WH | 0.5 |
| 6 | DG | 0.5 |
