X181 - s-lhd-sop4

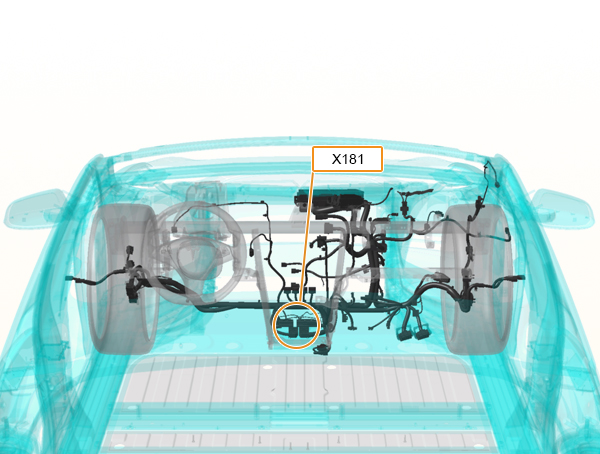

Location:
Connector Detail: amp_7-967313-1
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 5 | WH/BK | 0.5 |
| 6 | LB/VT | 0.5 |
| 7 | WH/RD | 0.5 |
| 8 | BN/LG | 0.5 |
| 9 | WH/DG | 0.5 |
| 11 | BK | 0.5 |
| 12 | BN/GY | 0.5 |
| 14 | RD/OG | 0.5 |
| 15 | LB/DG | 0.5 |
| 16 | GY/DG | 0.5 |
| 18 | PK/YE | 0.5 |
| 19 | LB/WH | 0.5 |
| 21 | BK | 3 |
| 22 | TN/DB | 0.5 |
| 23 | GY | 0.5 |
| 24 | GY/YE | 0.5 |
| 27 | TN/RD | 0.5 |
| 28 | BN/RD | 0.5 |
| 29 | TN/BK | 0.5 |
| 34 | BN/LB | 0.5 |
| 37 | TN/OG | 0.5 |
| 43 | WH/TN | 0.5 |
| 45 | WH/DB | 0.5 |
| 46 | WH/BN | 0.5 |
| 47 | RD/WH | 3 |
