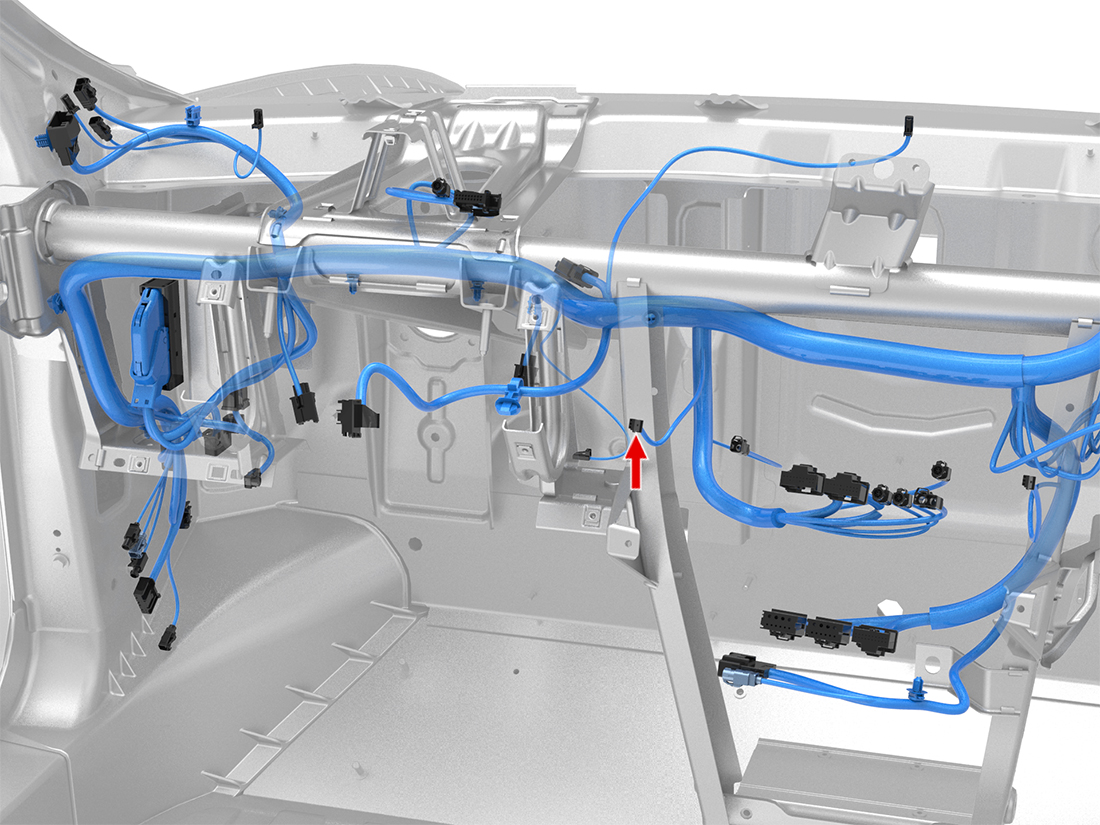

X260 - s-lhd-sop4
Location:
Connector Detail: amp_1-1718346-1
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | VT/BN | 0.35 |
| 2 | LG/WH | 0.35 |
| 3 | BK | 0.35 |
2012-2020 Model S Connector Reference
