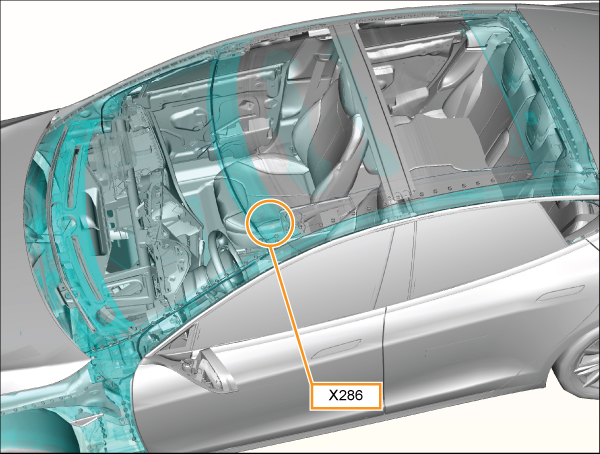

X286 - s-lhd-sop4
Location:
Connector Detail: molex_3901-2025
Gender:
Color: Ivory
| Cav | Col | Gauge |
|---|---|---|
| 1 | YE/DG | 0.35 |
| 2 | BK | 0.35 |
2012-2020 Model S Connector Reference
