X408 - s-lhd-sop4

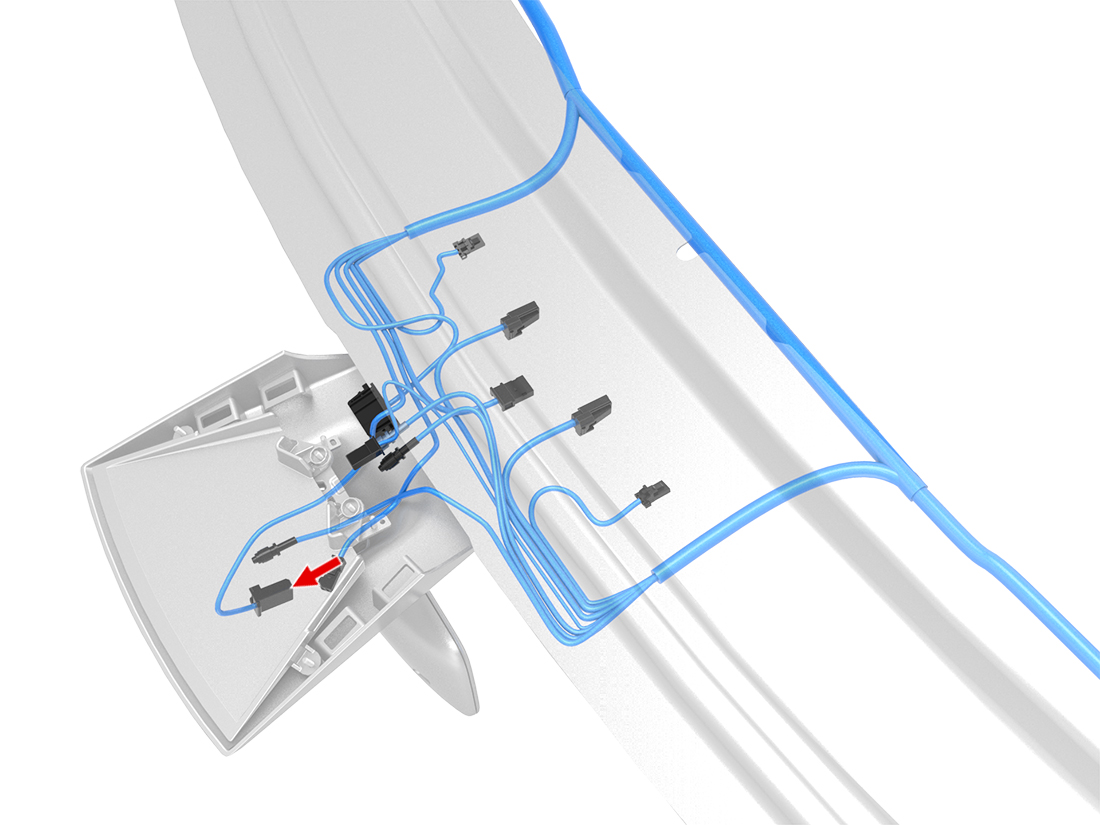

Location:
Connector Detail: jst_j11df-06v-kx
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1A | YE/DG | 0.5 |
| 1B | TN/OG | 0.5 |
| 2A | BK | 0.5 |
| 2B | TN/DG | 0.5 |
| 3A | LG/VT | 0.35 |
| 3B | WH/DB | 0.5 |
2012-2020 Model S Connector Reference
