X490 - s-lhd-sop4

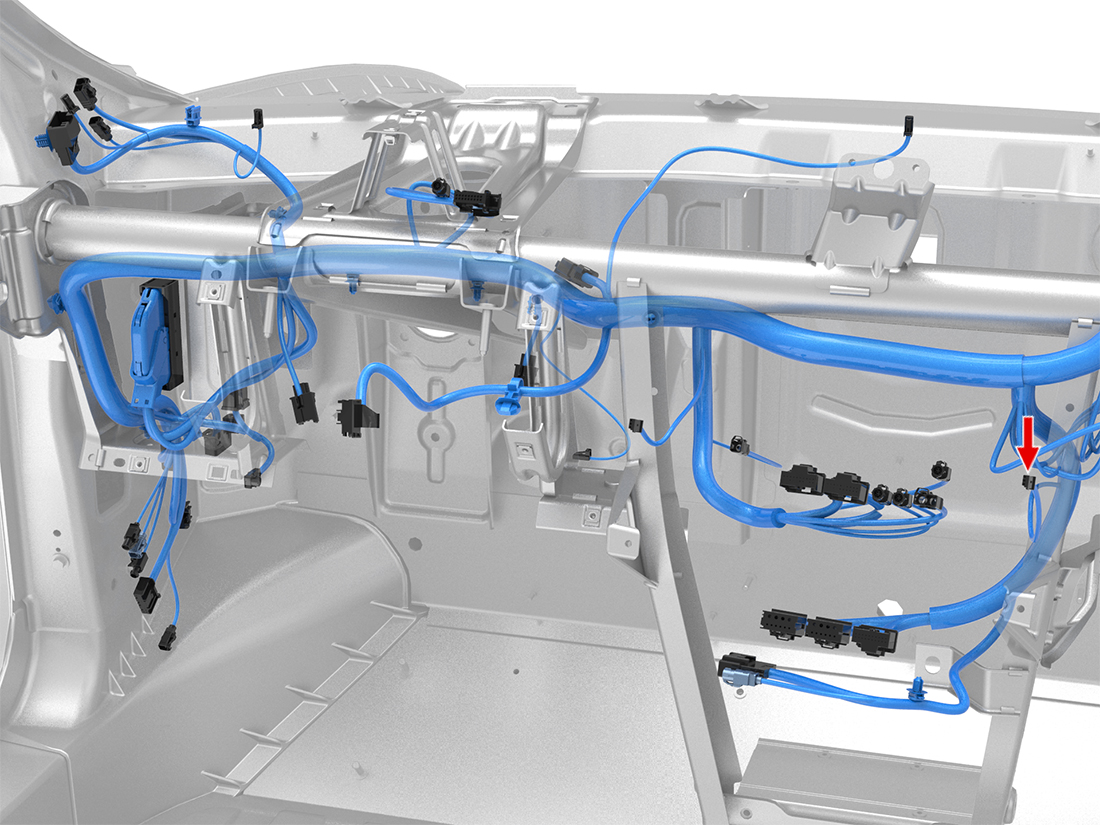

Location:
Connector Detail: amp_1-1718346-1
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | DB/WH | 0.35 |
| 2 | DB/PK | 0.5 |
| 3 | BK | 0.35 |
2012-2020 Model S Connector Reference
