X552 - s-lhd-sop4
Location:

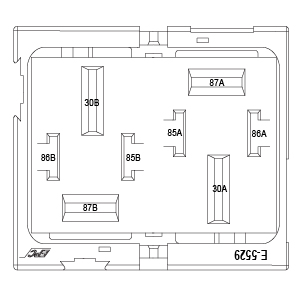

Connector Detail: aees_e5529
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 85A | BK | 0.35 |
| 86A | RD/YE | 0.35 |
| 30A | RD/LB | 5 |
| 87A | RD/WH | 5 |
| 85B | RD/OG | 0.35 |
| 86B | BK | 0.35 |
| 30B | RD/OG | 5 |
| 87B | RD/GY | 5 |
2012-2020 Model S Connector Reference
