X559 - s-lhd-sop4

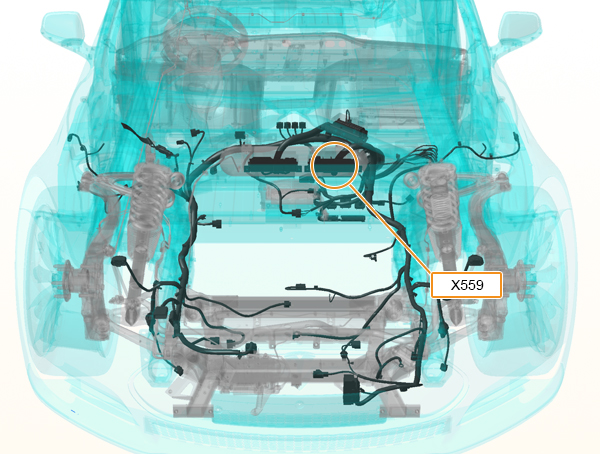

Location:

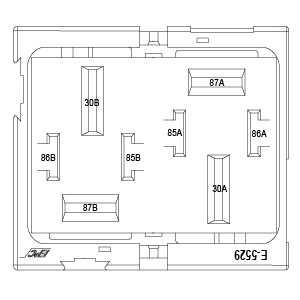

Connector Detail: aees_e5529
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 85A | PK/BK | 0.35 |
| 86A | BK | 0.35 |
| 30A | RD/GY | 8 |
| 87A | RD | 8 |
| 85B | RD | 0.35 |
| 86B | BK | 0.35 |
| 30B | RD/WH | 5 |
| 87B | RD/BN | 5 |
2012-2020 Model S Connector Reference
