X802 - s-lhd-sop4
Location:

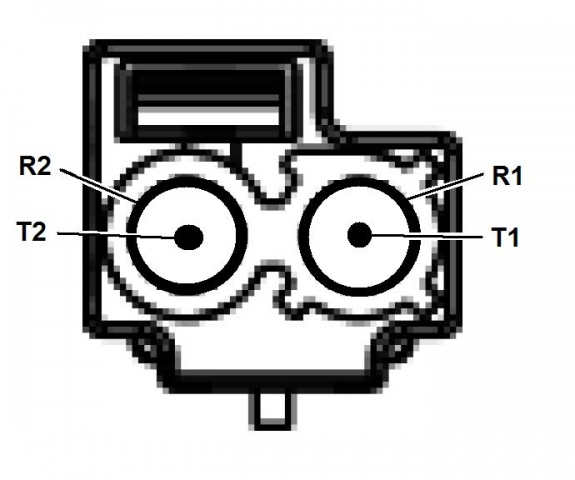

Connector Detail: amphenol_2fah-ndsj-c00-9
Gender:
Color: Violet
| Cav | Col | Gauge |
|---|---|---|
| T1 | NA | 0.22 |
| R1 | SH | 3.01 |
| T2 | NA | 0.22 |
| R2 | SH | 3.01 |
2012-2020 Model S Connector Reference
