X900M - s-lhd-sop4

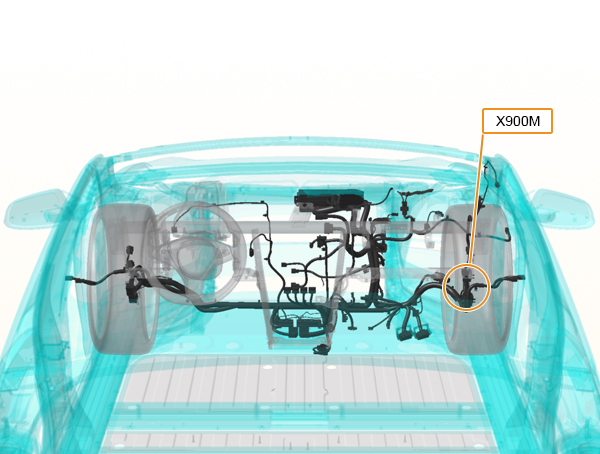

Location:

Connector Detail: yazaki_7282-4190-30

Gender:

Color: BK

Cav	Col	Gauge
1	GY	2
2	GY/BK	2
3	YE/BN	3
4	BK	3
5	RD/YE	2
6	DG	2
7	DG/BK	2
10	DB/PK	0.5
11	RD	0.5
17	PK	0.35
18	PK/BK	0.35
19	SH	5.01
20	WH	0.35
21	YE	0.35
22	SH	5.01
23	DB/WH	0.5
24	DB/GY	0.5
28	RD/BK	0.5
29	YE/OG	0.5
33	LG	0.5
33	LG	0.5
34	LG/OG	0.5
35	LG/VT	0.5
36	RD/YE	0.5
39	RD/WH	1
40	BK/WH	1
42	DG/VT	0.35
