X910M - s-lhd-sop4

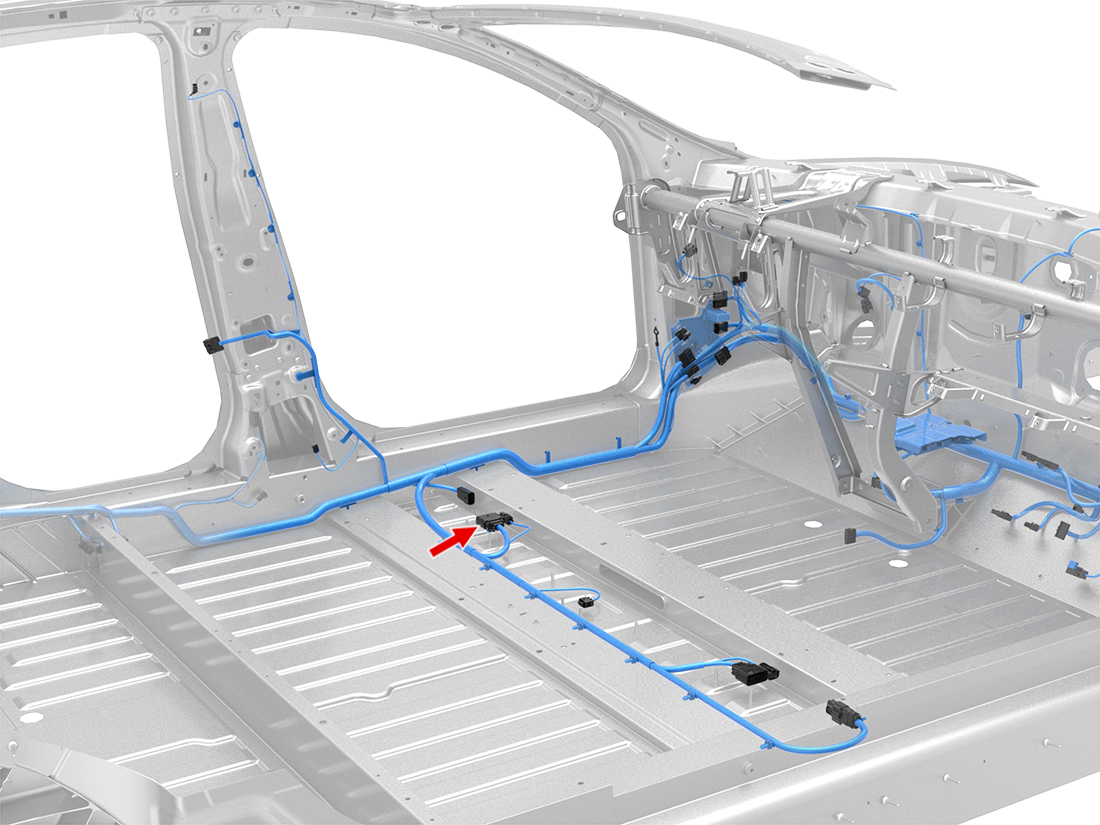

Location:
Connector Detail: amp_1-1718491-1
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | YE | 0.5 |
| 2 | LG/RD | 0.5 |
| 3 | PK/LG | 0.5 |
| 4 | VT/GY | 0.5 |
| 9 | BK | 0.5 |
| 10 | BK | 0.5 |
| 11 | LG/BK | 0.5 |
| 12 | DG/LG | 0.5 |
| 13 | VT | 0.5 |
| 18 | GY/WH | 0.5 |
| 19 | RD/WH | 2 |
| 20 | BK | 2 |
| 21 | RD/GY | 0.5 |
| 22 | BK | 0.5 |
| 23 | YE/DB | 0.75 |
| 24 | BK | 0.75 |
| 25 | LG/VT | 0.5 |
