X925F - s-lhd-sop4

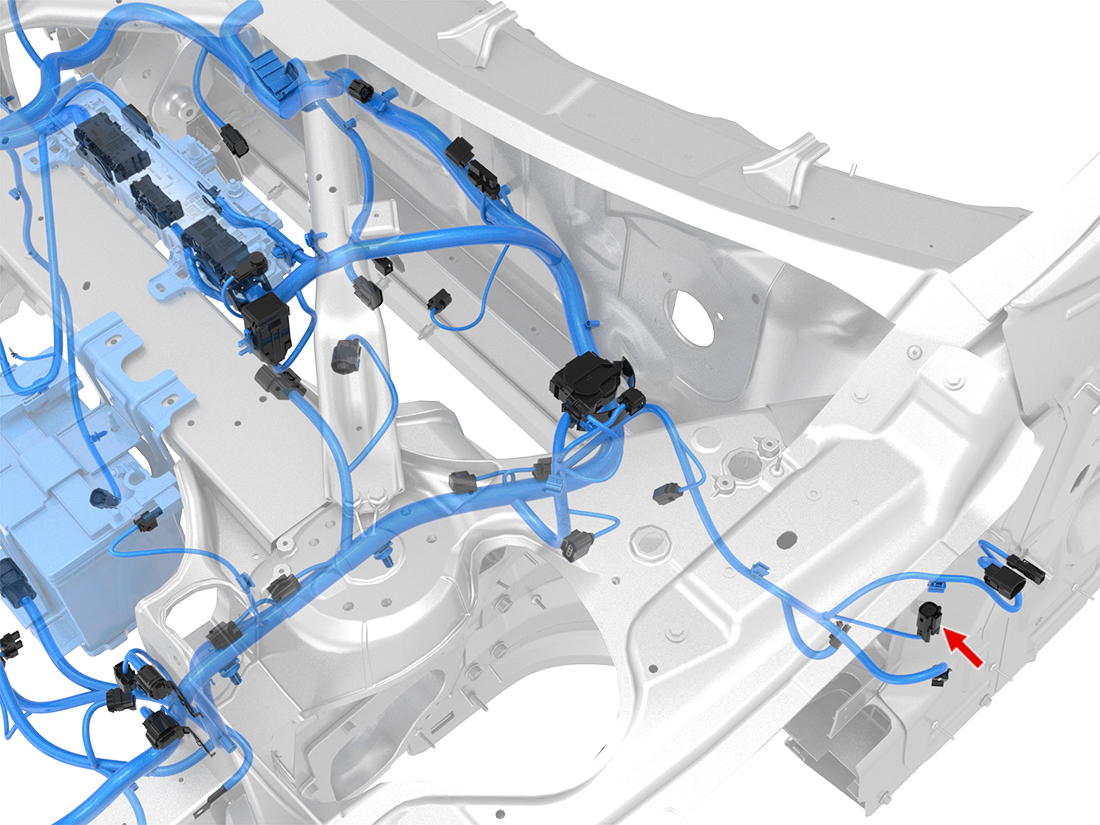

Location:
Connector Detail: molex_33471-0201
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | WH | 0.5 |
| 2 | BK | 0.5 |
