X939M - s-lhd-sop4

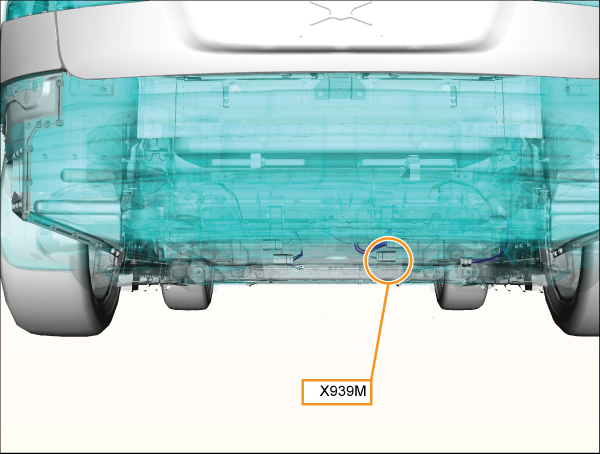

Location:
Connector Detail: molex_33482-1201
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | RD | 0.5 |
| 2 | DB | 0.5 |
| 3 | BN | 1 |
| 4 | BN/GY | 0.5 |
| 5 | OG/VT | 0.5 |
| 6 | BK | 1 |
| 7 | WH/BK | 0.5 |
| 8 | VT/LB | 0.5 |
| 9 | BN/YE | 0.5 |
| 11 | YE/BK | 0.5 |
| 12 | YE/BN | 0.5 |
