X950M - s-lhd-sop4

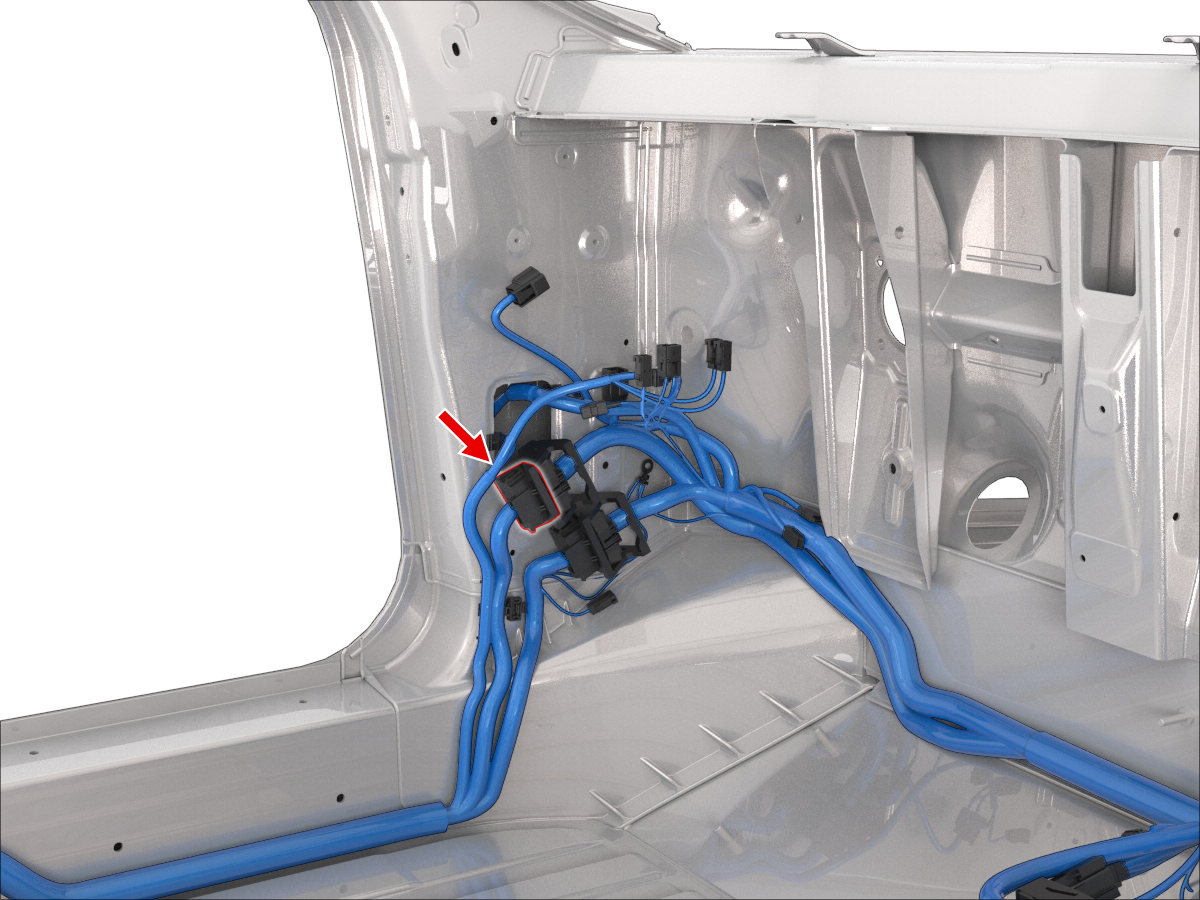

Location:

Connector Detail: yazaki_7282-4190-30

Gender:

Color: BK

Cav	Col	Gauge
1	VT	2
2	VT/BK	2
3	DG	2
4	RD/GY	2
5	RD/WH	2
6	VT	1
7	RD/OG	0.5
8	WH/LG	0.5
9	DG/VT	0.5
10	RD/GY	0.5
11	VT/GY	0.5
12	VT	0.5
13	WH/LB	0.5
14	BN/OG	0.5
15	LG	0.5
16	RD/WH	1
17	BK/WH	1
18	WH/BN	0.35
19	WH/RD	0.35
20	WH/DG	0.5
21	RD/BK	0.5
22	RD/GY	1
23	BK/GY	1
24	WH/DB	0.35
25	WH/VT	0.35
26	PK/BK	0.5
27	GY/WH	0.35
28	YE/DB	0.5
29	YE/GY	0.5
30	YE/BK	0.35
31	BK/TN	0.35
32	YE/DB	0.75
33	RD	0.35
34	BK	0.35
35	SH	3.01
36	DG/LG	0.5
37	OG/LG	0.5
38	OG	0.35
39	DB/PK	0.35
40	DG/WH	0.5
41	DG	0.5
42	LG/VT	0.35
43	VT	0.5
