X975M - s-lhd-sop4

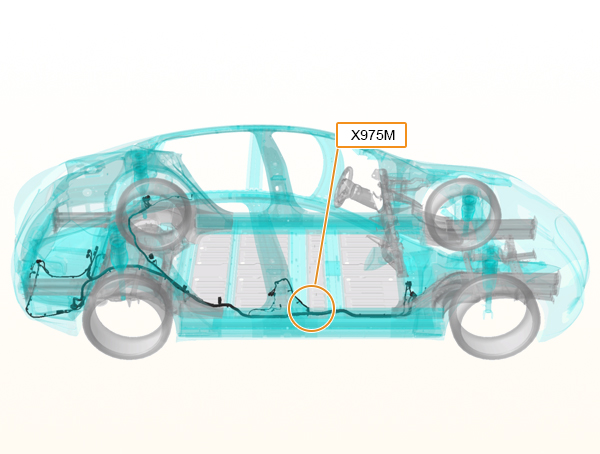

Location:
Connector Detail: yazaki_7282-6568-40
Gender:
Color: LightGray
| Cav | Col | Gauge |
|---|---|---|
| 1 | TN | 0.5 |
| 2 | RD | 0.35 |
| 3 | WH/OG | 0.35 |
| 5 | WH/LB | 0.5 |
| 6 | BN/OG | 0.5 |
| 7 | WH/BN | 0.5 |
| 8 | WH/RD | 0.35 |
| 9 | OG/WH | 0.35 |
| 11 | TN/DG | 0.35 |
| 12 | LB/BN | 0.35 |
| 13 | WH/VT | 0.5 |
| 14 | WH/LG | 0.5 |
| 15 | DG/VT | 0.5 |
| 16 | LG | 0.5 |
| 17 | WH/DG | 0.35 |
| 18 | WH/DB | 0.35 |
| 19 | WH/BK | 0.5 |
