X976M - s-lhd-sop4

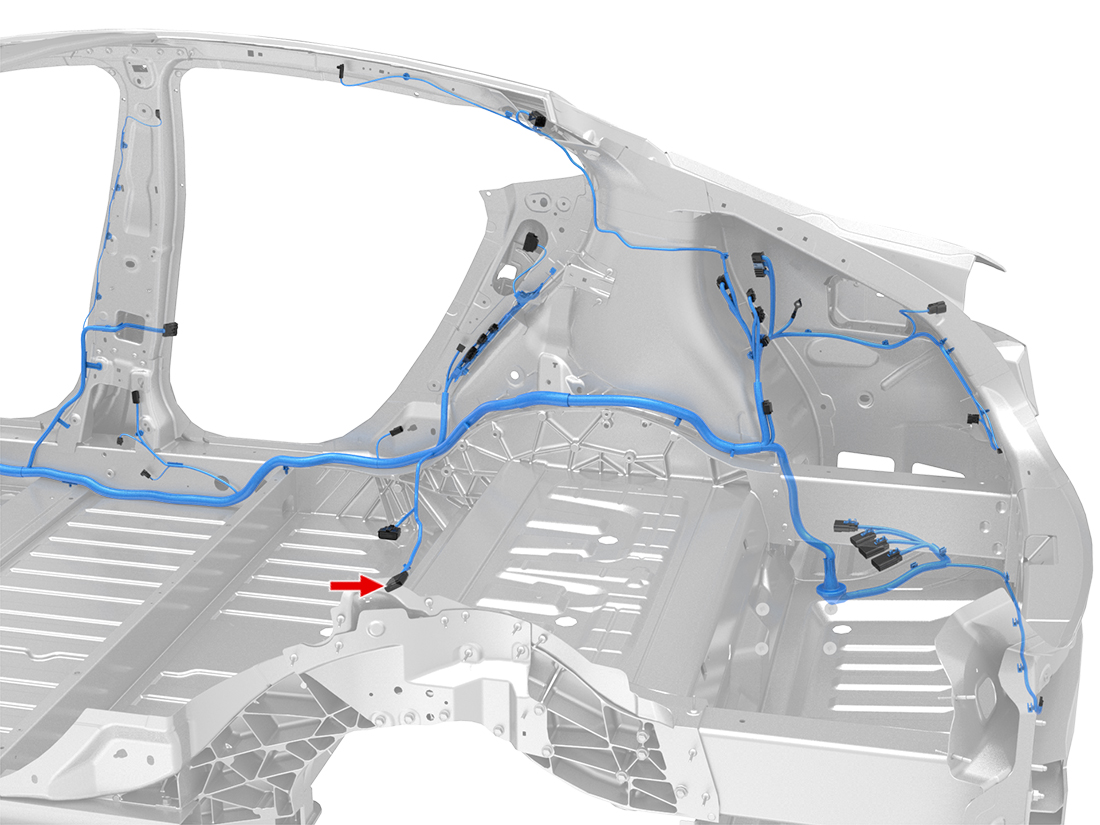

Location:
Connector Detail: yazaki_7282-6568-40
Gender:
Color: LightGray
| Cav | Col | Gauge |
|---|---|---|
| 1 | VT | 0.5 |
| 2 | OG | 0.5 |
| 3 | RD/GY | 0.75 |
| 4 | YE/BK | 0.5 |
| 5 | DG/WH | 0.5 |
| 6 | DG | 0.5 |
| 7 | RD/GY | 0.5 |
| 14 | YE/RD | 0.5 |
| 15 | RD | 0.5 |
| 16 | DB | 0.5 |
| 17 | YE | 0.5 |
