X990F - s-lhd-sop4

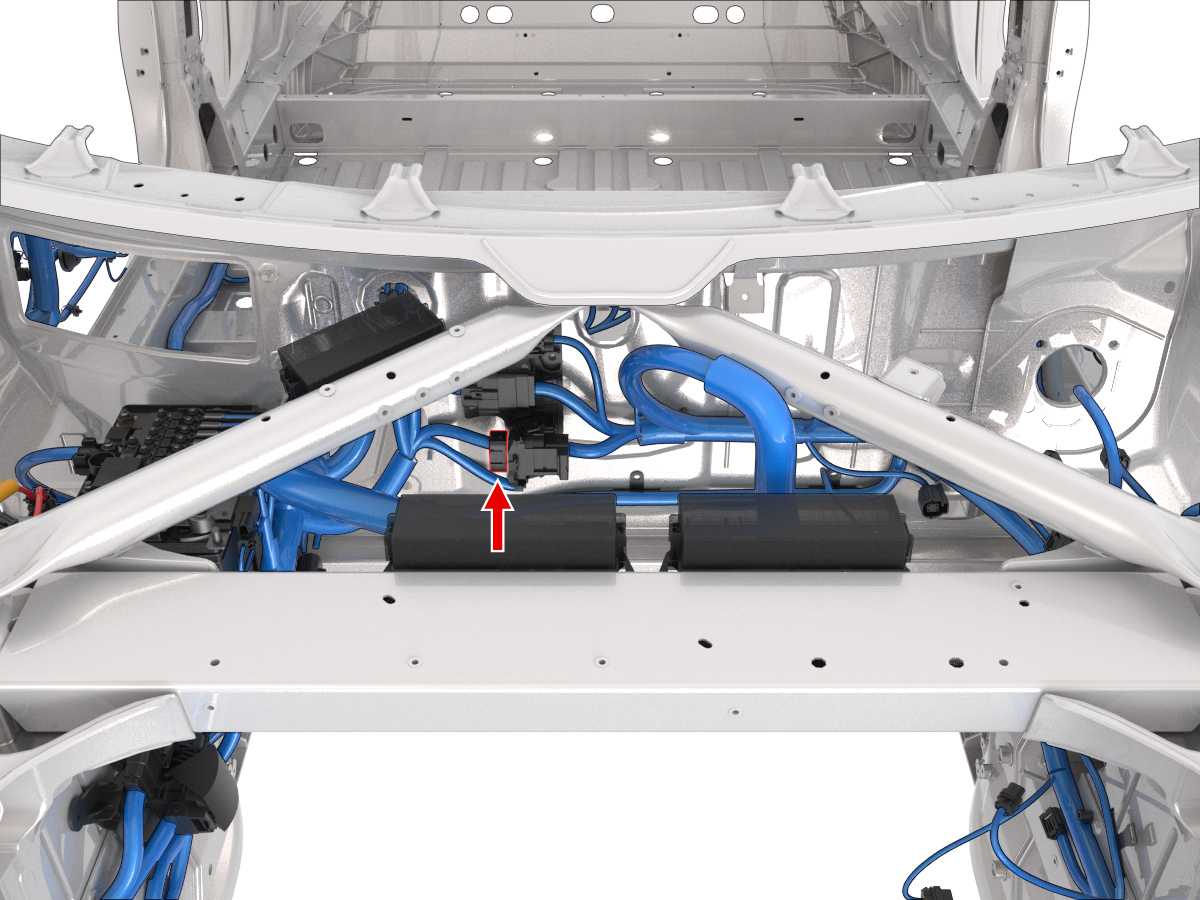

Location:

Connector Detail: yazaki_7283-8866-30

Gender:

Color: BK

Cav	Col	Gauge
1	RD	0.35
2	PK/RD	0.35
3	PK/DG	0.35
4	DG	0.35
5	OG/DG	0.35
6	RD/WH	0.35
7	WH/OG	0.35
8	WH/VT	0.35
9	WH/BK	0.35
10	WH/TN	0.35
11	BK/TN	0.35
12	RD/YE	0.35
13	TN/DG	0.35
14	WH/BN	0.35
15	RD/GY	0.35
16	WH/DG	0.35
17	WH/DB	0.35
18	GY/BN	0.35
19	GY/RD	0.35
20	GY/DG	0.35
21	GY/DB	0.35
22	WH/RD	0.35
23	TN/BK	0.35
24	PK/BK	0.35
25	RD	0.35
26	BK	0.35
27	SH	3.01
28	LG/RD	0.35
29	RD/PK	0.35
30	TN	0.35
34	GY/WH	1
35	OG	1
36	DG/RD	0.75
37	OG/BK	0.75
38	RD/WH	0.5
39	DB/WH	1
41	WH/BK	2
42	RD/WH	2
44	RD/BK	0.5
45	OG/RD	1
46	OG/YE	1
47	BK/WH	0.5
48	BK	0.5
49	GY/BK	0.5
50	BK	0.5
51	DG/WH	0.5
52	DG	0.5
53	RD/DB	0.5
54	VT	0.5
