X102 - s-lhd-sop5

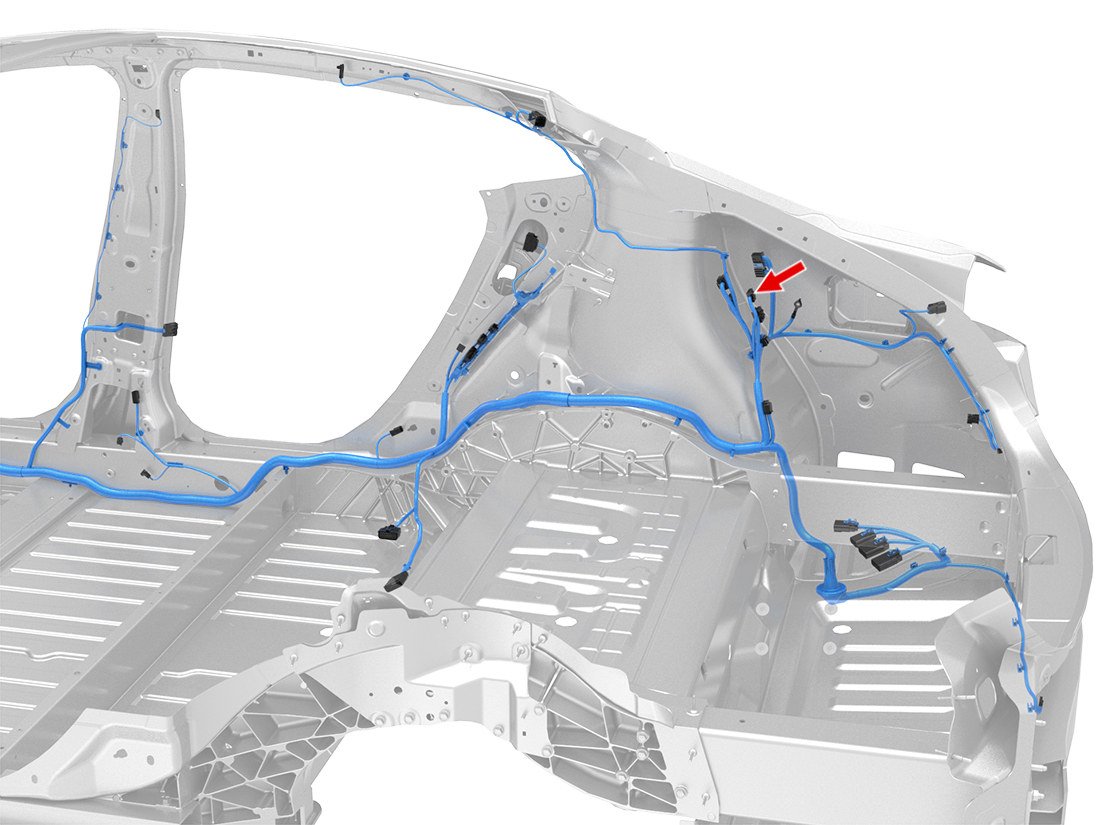

Location:
Connector Detail: jae_mx34020sf1
Gender:
Color: Gray
| Cav | Col | Gauge |
|---|---|---|
| 3 | WH/DG | 0.35 |
| 5 | VT | 0.5 |
| 6 | WH/OG | 0.5 |
| 7 | VT/LB | 0.5 |
| 8 | WH/DG | 0.5 |
| 13 | DG | 0.35 |
2012-2020 Model S Connector Reference
