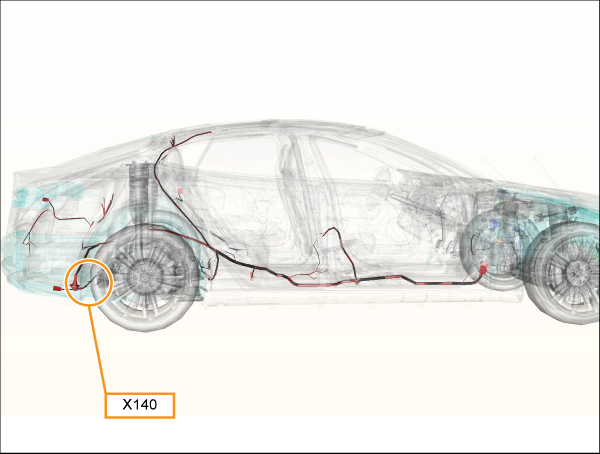

X140 - s-lhd-sop5
Location:
Connector Detail: amp_1-967640-1
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | BK | 0.5 |
| 2 | PK/DG | 0.5 |
| 3 | DG | 0.35 |
| 4 | WH/DG | 0.35 |
2012-2020 Model S Connector Reference
