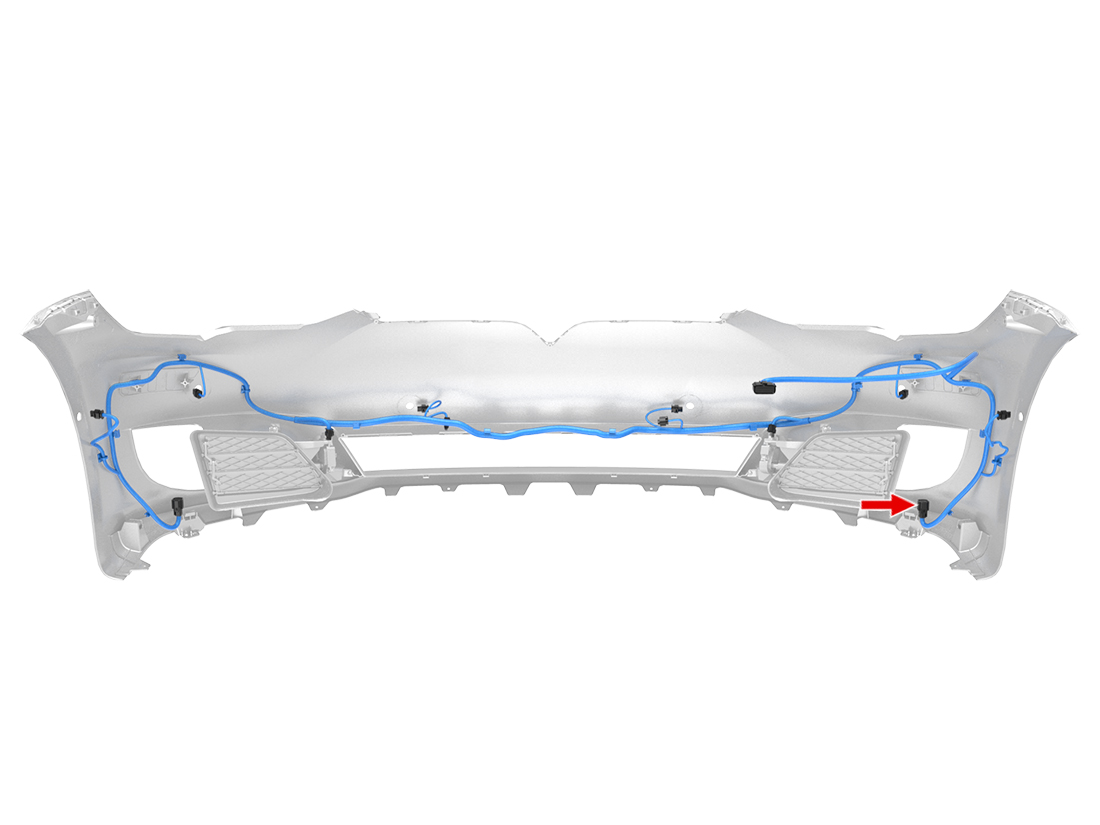

X266 - s-lhd-sop5
Location:
Connector Detail: molex_33472-0601
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 2 | WH/DG | 0.35 |
| 3 | RD/OG | 0.35 |
| 4 | WH/DB | 0.35 |
| 5 | BK | 0.75 |
2012-2020 Model S Connector Reference
