X331 - s-lhd-sop5

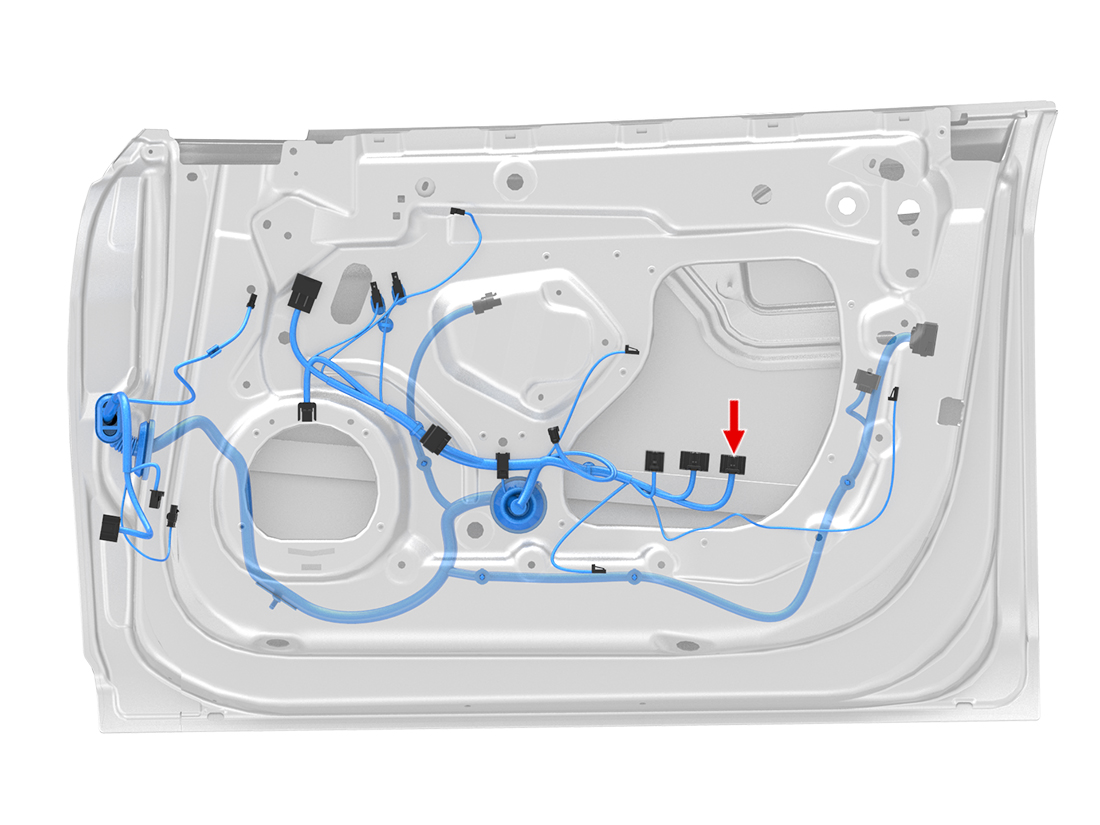

Location:

Connector Detail: jae_mx34024sf1

Gender:

Color: Gray

Cav	Col	Gauge
1	DB/PK	0.5
2	VT/GY	0.35
3	WH	0.35
4	VT	0.5
5	RD	0.35
7	WH/RD	0.35
8	RD/OG	0.35
9	TN/DB	0.5
9	TN/DB	0.5
10	DB/GY	0.35
11	WH/DB	0.35
12	TN	0.35
14	GY	0.5
15	TN/BK	0.35
16	DB/LB	0.35
18	WH/BN	0.35
19	BK/GY	0.35
20	LG	0.35
21	BN/YE	0.5
22	BN	0.5
23	DB/BK	0.35
24	DG	0.35
