X414 - s-lhd-sop5

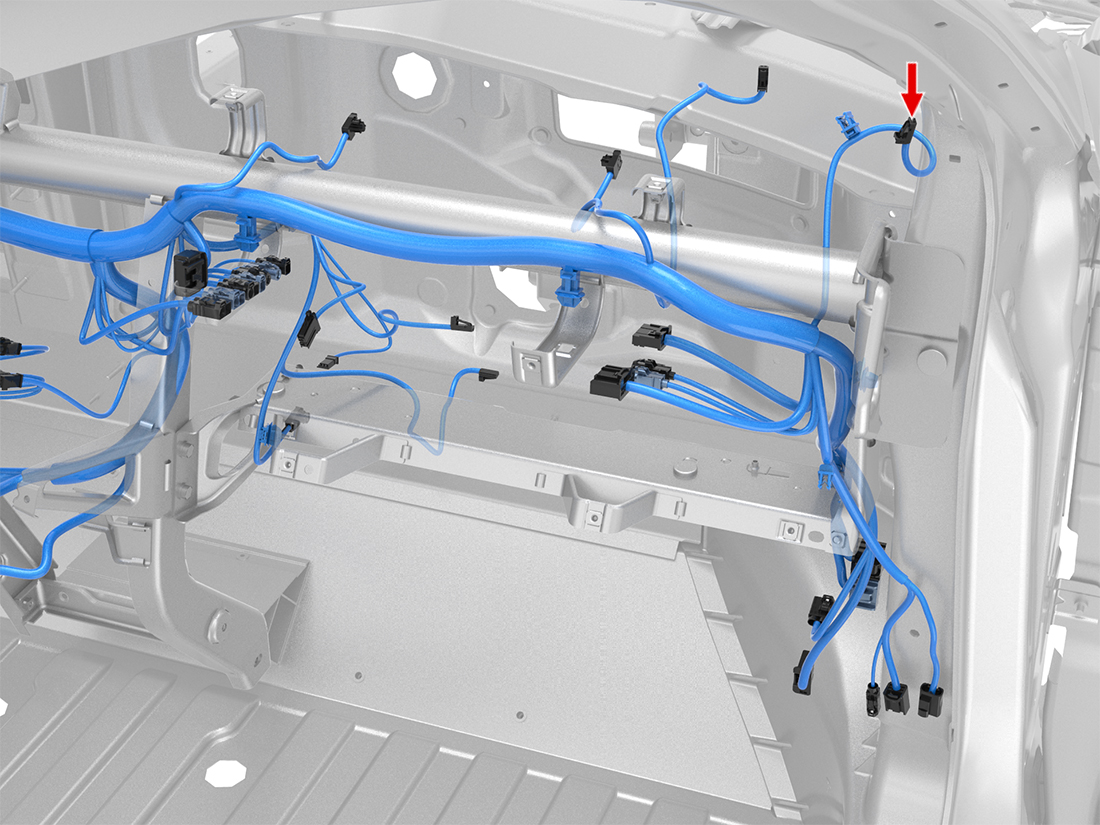

Location:
Connector Detail: amp_1-1534113-1
Gender:
Color: BK
| Cav | Col | Gauge |
|---|---|---|
| 1 | BN | 0.75 |
| 1 | BN | 0.75 |
| 2 | BN/BK | 0.75 |
| 2 | BN/BK | 0.75 |
